FX-7SC-20K

A full-direction medium-luminosity white aviation obstruction light with a white LED light source.

It can be installed on iron towers with a height of over 60 meters but less than 150 meters, and on chimneys with a height of over 90 meters but less than 150 meters.

For wind turbines and other places where the top of the blade is less than 150 meters above the ground, daytime obstacle signs can be saved.

Features

Energy saving and long lifespan have been achieved through the use of LED.

1.Power: 40W※1

2. Light source lifespan: 50,000 hours ※2

※1:1 Power consumption of light mode (daytime, dim light mode).

※2: The lifespan of the light source is up to 50,000 hours, but it is recommended to maintain and inspect it regularly.

This product can also be used to study glare (※3).

• Corneal luminance calculation data for glare research can be provided.

※3: Refers to the "glare" that causes discomfort or makes it difficult for people to see objects clearly.

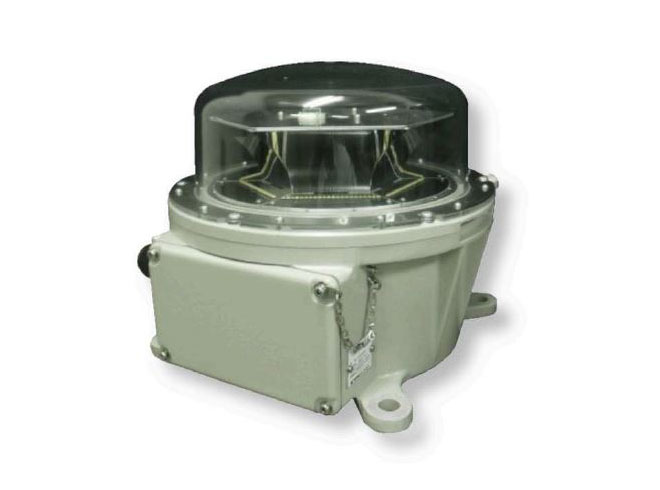

External view

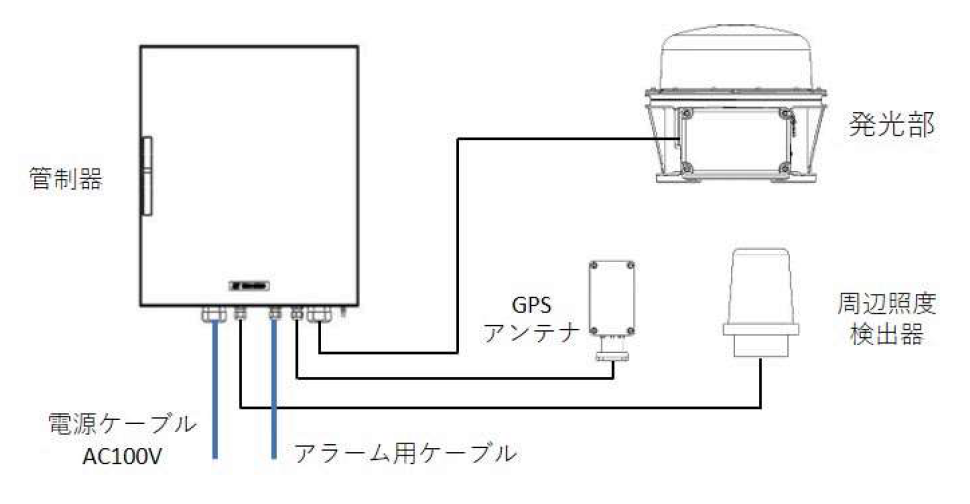

Wiring diagram
