Grounding resistance reduction materials (SAN-EARTH )

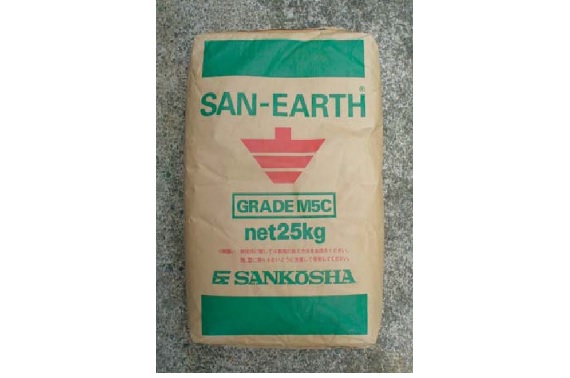

GRADE  M5C

Characteristics

• Excellent grounding effect: Composed of powder particles, it assimilates with the soil and has a large effective contact area with the earth.

It has a good effect that traditional grounding resistance reduction materials (agents) cannot achieve. There are many causes of soil corrosion.

However, the grounding wire constructed with SAN-EARTH is not corroded compared with the separately buried grounding wire.

• Simple and economical construction: M5C, in principle, does not require water during construction. Tree roots and rock protrusions,

etc. will not cause obstacles to construction and can save a lot of manpower and material resources. And it will not lean to one side even on

inclined ground, allowing for flexible construction and being suitable for all grounding construction.

• Pollution-free: SAN-EARTH is a very stable substance that will not dissolve underground or undergo electrolytic changes, enabling pollution-free grounding.

• It complies with the IEC62561-7 standard

• Trademarks:  SAN-EARTH

Types and Uses

GRADE BC1

Product Introduction

The use of bio-generated by-products in conductive materials belongs to environmentally friendly materials for reducing grounding resistance. Store the CO₂ that warms the earth in the soil.

Store the CO₂ that causes global warming in the soil

It is lighter compared with the traditional product M5C

It has the same grounding resistance reduction effect as the traditional product M5C

The strip construction does not require water addition and can be directly applied in powder form

The construction length of each bag is the same as that of the traditional product M5C

※ Strip construction approximately 3m (excavation width 0.5m)

Characteristics

Store 9.6 kilograms of CO₂ that causes global warming in the soil

The CO₂ storage amount per bag of the product calculated based on the carbon storage amount calculation formula

※. The CO₂ emissions of cement and those related to manufacturing are excluded.

※ According to the methodology of J credit for agricultural land application of the Ministry of Agriculture, Forestry and Fisheries.

It is reduced by 6 kilograms compared with traditional products

M5C: 25kg per bag, BC1:19kg per bag.

The construction length of each bag remains unchanged. The strip construction is approximately 3 meters (excavation width 0.5 meters). Reduce the burden of transportation and construction.

It has the same effect of reducing grounding resistance as traditional products

The grounding resistance value of the 3m strip construction (Kanto Fertile soil layer) : M5C is 73Ω, BC1 is 59Ω※

The burial test results of our company's experimental field.
