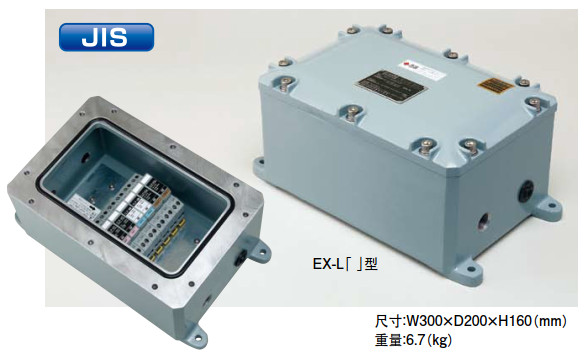

EX-L「」type（communication）

JIS Category C2/D1 compliant

Inquire Now Online Message

Conforming standards:

Explosion-proof machine qualified Code No. TC19314

JIS C 5381-1 Conforms

Ministry of Land, Infrastructure and Transport construction equipment design standards Conforms

Ministry of Land, Infrastructure and Transport public building construction standard specification Conforms

RoHSⅡ compliant

Features:

Used in explosion-proof areas such as petrochemical plants and heavy chemical plants

CLP-「」communication SPD（JIS Category C2、D1 compliant）installed

Applications:

Used for information lines such as communication and control cables in explosion-proof areas

Petrochemical plant

Oil reserve base

LPG gas stations

LNG plant

heavy chemical plant

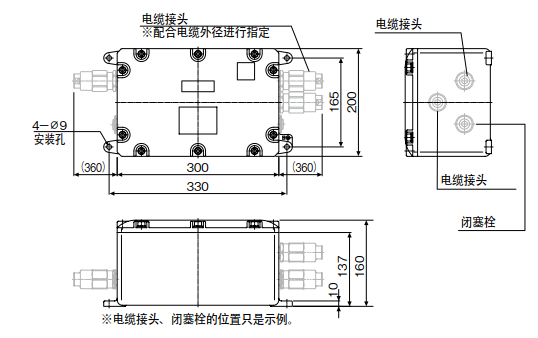

WARQ24T5OY`XQC1DR[UP5M4

Item	Conditions	Performance
Item	Conditions	CLP-K2	CLP-N1	CLP-NM	CLP-H3(a,b,c,d)
Applicable circuit	―	up to AC110V Controlcircuit	Transport circuit, measurement circuit, control circuit(for balanced circuit)		4～20mA circuit Corresponds to various circuit voltages
Maximum continuous operating voltage (Uc)	―	DC180V	DC52V	DC170V	a:DC9V b：DC13.5V c：DC27V d：DC52V
Voltage protection level (Up)	1.2/50μs 10kV	1300V	900V	1.0kV or less（L-E） 50V or less（L-L）	a：40V or less b：45V or less c：60V or less d：90V or less
Impulse durability	Category C2 （8/20μs）	4k（10 times）	10kA（10 times）
Impulse durability	Category D1 （10/350μs）	2kA（2 times）	5kA（2 times）
SPD Number of implementations	A maximum of 6 units can be installed according to the combination	Up to 4 units with a combination of K2、 N1 、 NM			When combining type a ～ d Up to 2 sets
Operating environmental conditions	Rated operating temperature Rated operating humidity	-20℃～+60℃ 95％or less（no condensation）
