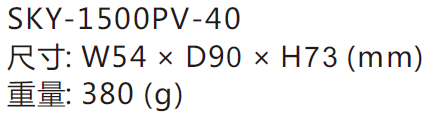

SKY-1500PV-40，SKY-1500PV-40FM

IEC 61643-31 compliant
RoHS compliant

Inquire Now Online Message

Conforming standards:

IEC 61643-11 compliant

RoHS compliant

Features:

Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)

Protection for DC1,500V PV system

Plug-in type

Deterioration display function

(warning contact output terminal)

Applications:

DC power supply circuits in PV system

DIN rail mountable (35mm)

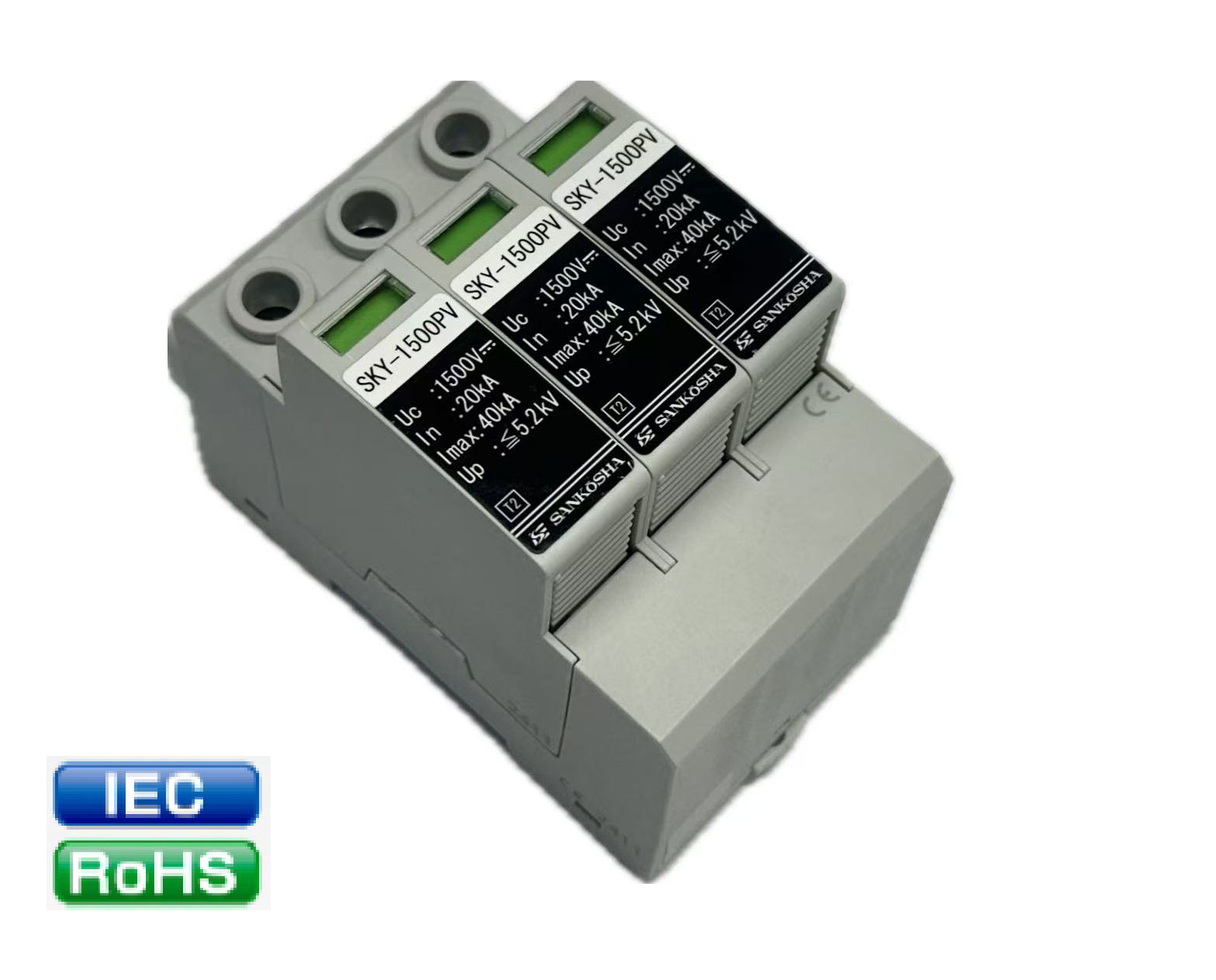

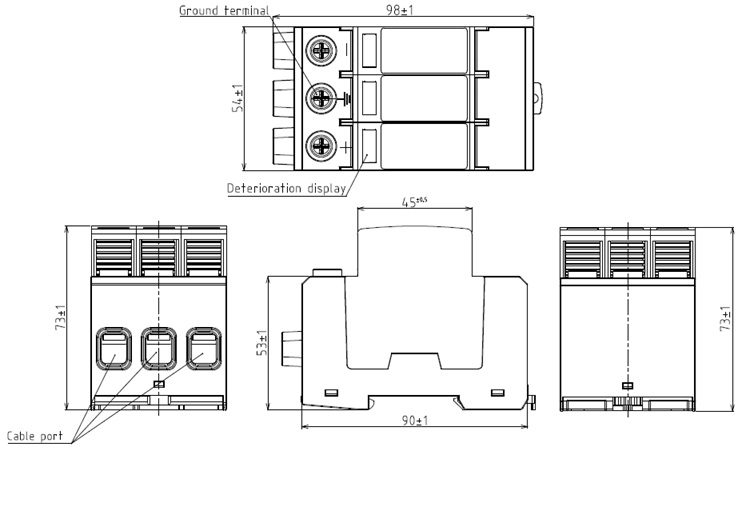

External View:

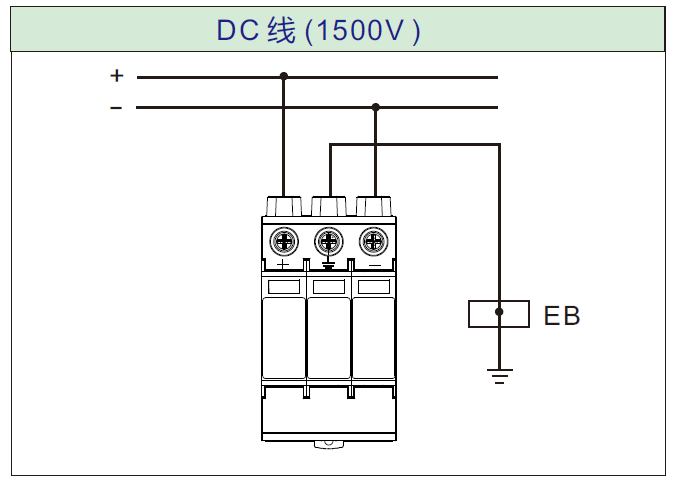

Installation examples:

Item	Measurement conditions	Performance
Maximum continuous operating voltage (Uc)	─	DC1500V
Nominal discharge current (ln)	8/20μs	20kA
Maximum discharge current (lmax)	8/20μs	40kA
Voltage protection level (Up)	＋/－ - PE，＋ - －	≤5.2kV
