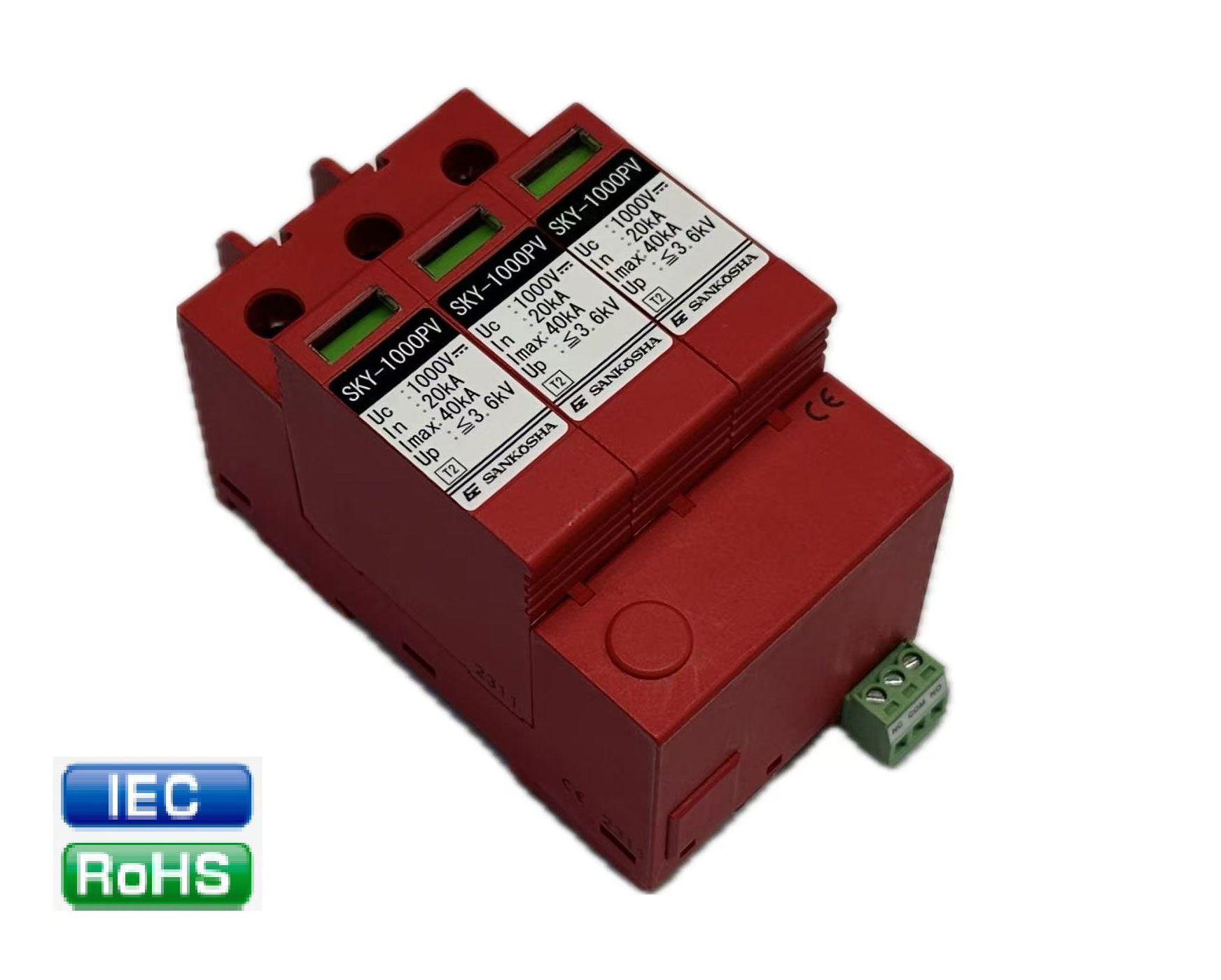

SKY-1000PV-40 ,SKY-1000PV-40FM

IEC 61643-31
compliant RoHS compliant

Inquire Now Online Message

Features:

Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)

Protection for DC1,000V PV system

Plug-in type

Deterioration display function

(warning contact output terminal)

Applications:

DC power supply circuits in PV system

DIN rail mountable (35mm)

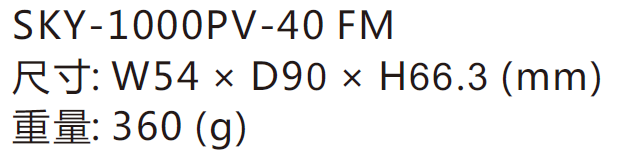

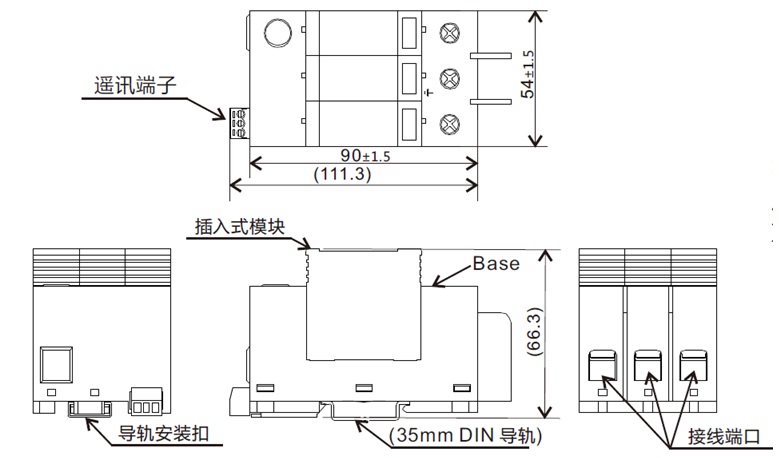

External View:

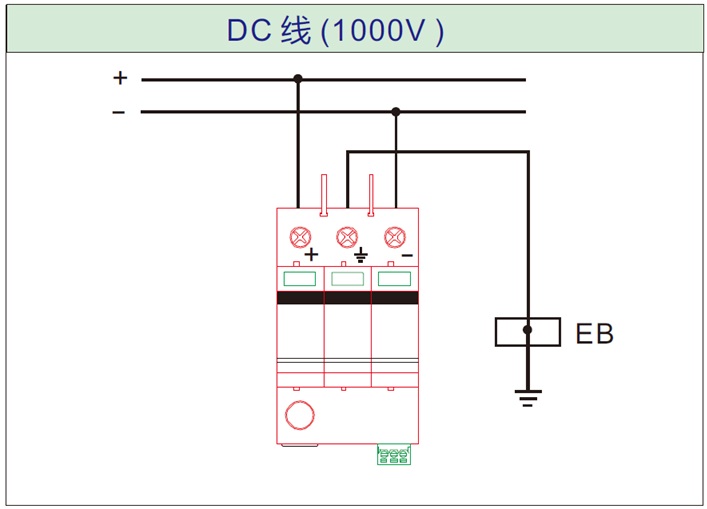

Installation examples:

Item	Measurement conditions	Performance
Maximum continuous operating voltage (Uc)	─	DC1000V
Nominal discharge current (ln)	8/20μs	20kA
Maximum discharge current (lmax)	8/20μs	40kA
Voltage protection level (Up)	＋/－－PE	≤3.6kV
