MZSR-600PV , MZSR-1000PV

IEC 61643-31 compliant
RoHS compliant

Inquire Now Online Message

Features:

Maximum discharge current 40kA (induction lightning waveform 8/20µs)

Protection for DC600V,DC1000 PV system

Built in interlocking DC fuse with deterioration display,separating safely while PV system accident

Plug-in type

Deterioration display function(warning contact output terminal attached)

DIN rail mountable（35mm）

Appearance of patented products

Applications:

DC Power supply circuits in PV systems

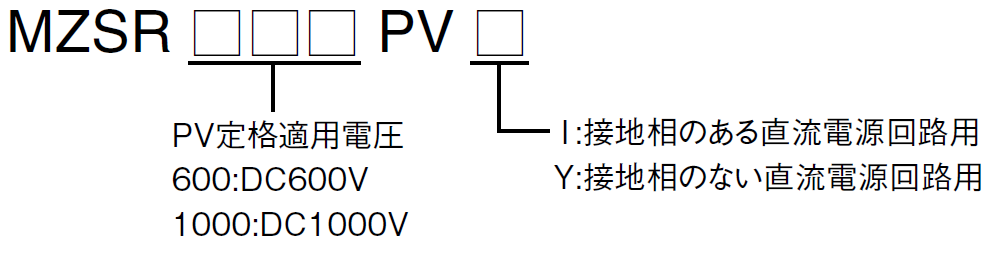

Product model identification:

GDJ~N~8Z37@2@Q)F(G(3

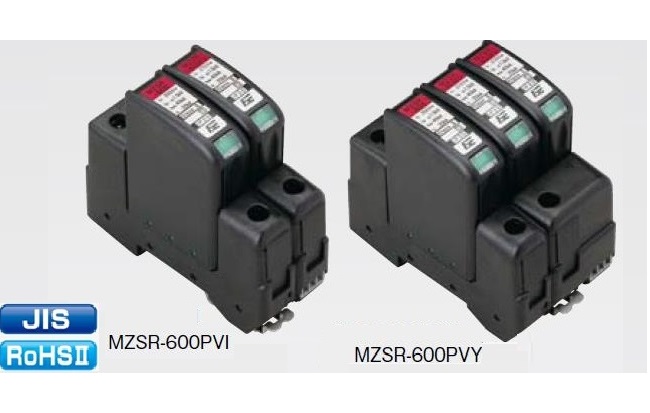

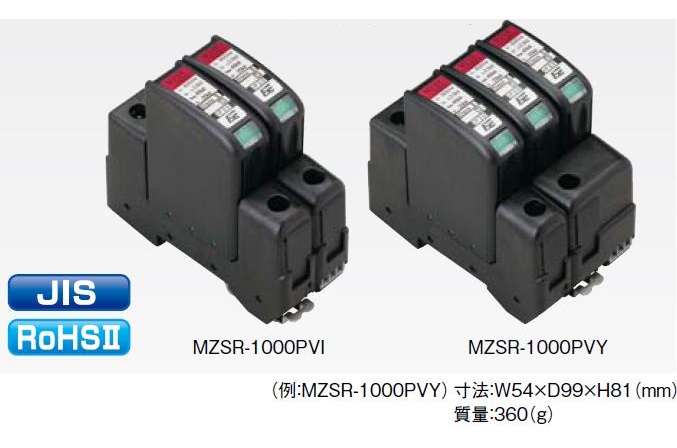

Appearance diagram:

_RWAVFZV7KT4)W3LF68FW

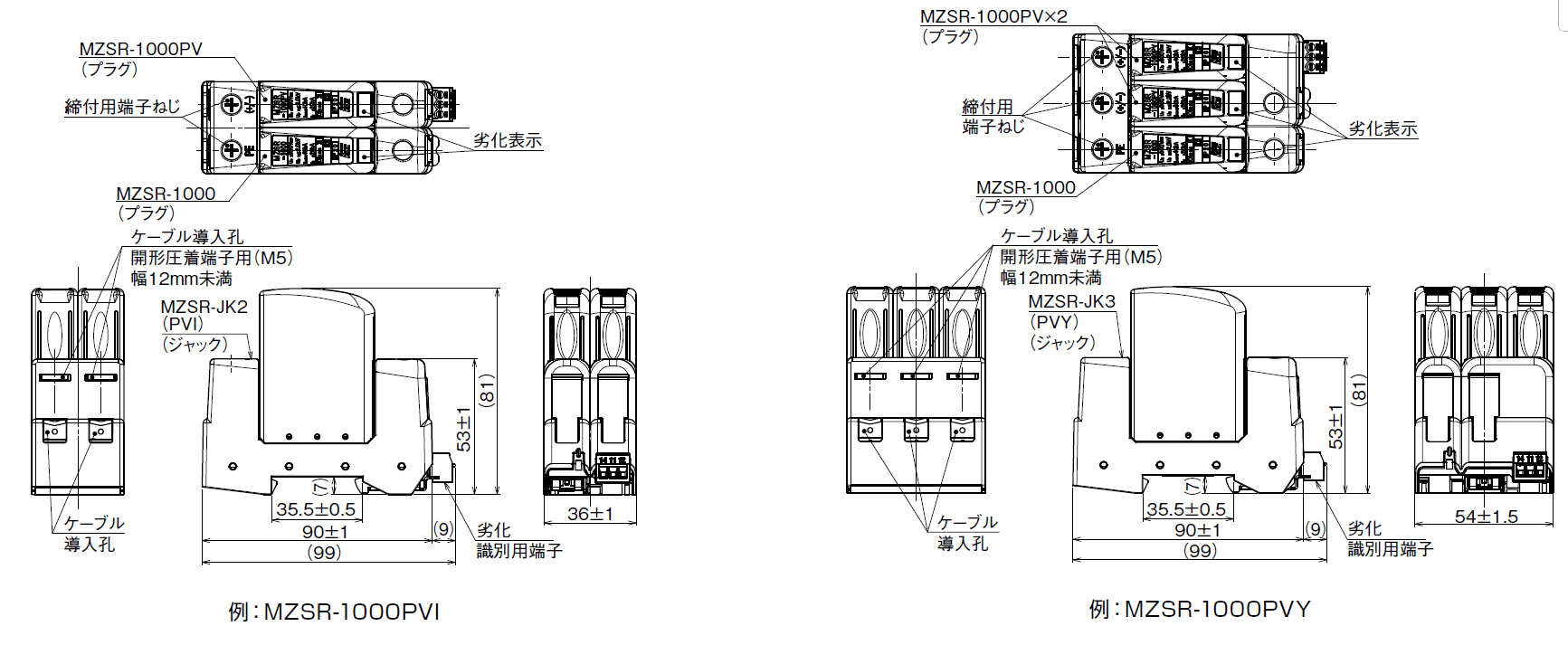

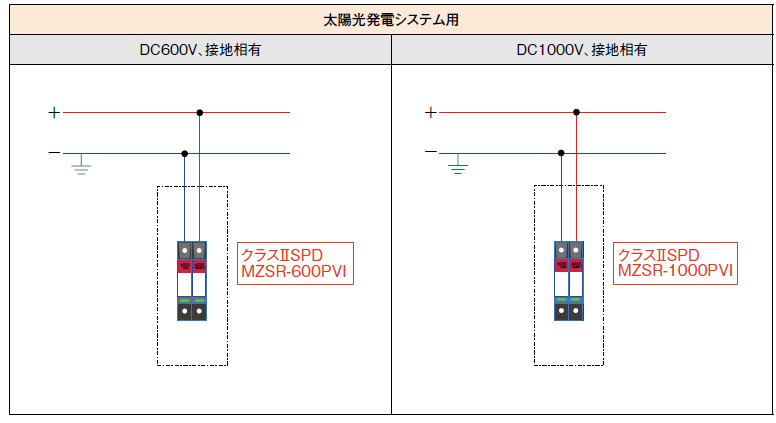

Installation examples (MZSR-[ ]PVI):

17DH8BUDVV~__@(@5`0HLL

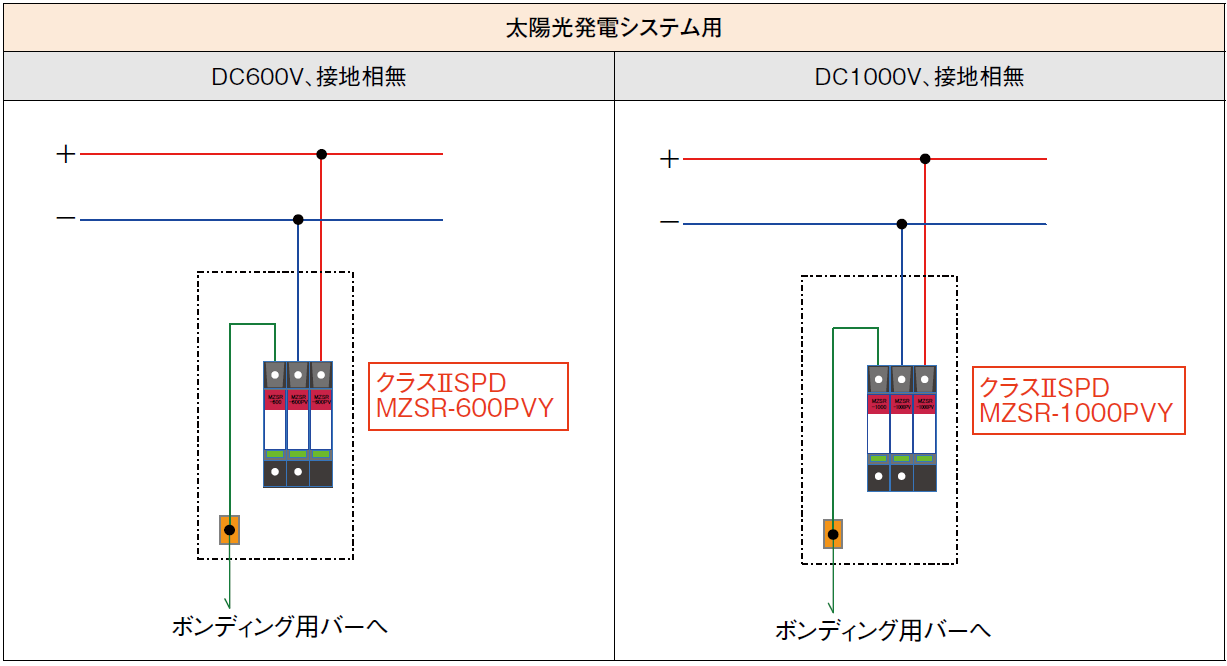

Installation examples (MZSR-[ ]PVY):

T%9DQ[TN73BN%7PCG]O~6P

Item	Measurement conditions	Performance
		MZSR-600PVI	MZSR-600PVY	MZSR-1000PVI	MZSR-1000PVY
Applicable routes	─	DC600V （There is a grounding phase）	DC600V （Grounding phase none）	DC1000V （There is a grounding phase）	DC1000V （Grounding phase none）
Maximum continuous operating voltage UCPV	─	DC720V		DC1200V
Maximum discharge current (lmax)	8/20µs	40kA
Nominal discharge current (ln)	8/20µs	20kA
Voltage protection level (Up)	Based on IEC	3kV or less		4kV or less
Voltage protection level Up（5kA)	Based on IEC	2.5kV or less		3.5kV or less
