Features:
IEC test class I test equivalent
Maximum supported impulse discharge current 100kA (direct lightning wave type 10/350µs)，（only MZS-EBT）
DIN rail mountable（35mm）
With contact monitoring function（only MZS-EBT）
Applications:
Equipotential to ground (elimination of potential differences)

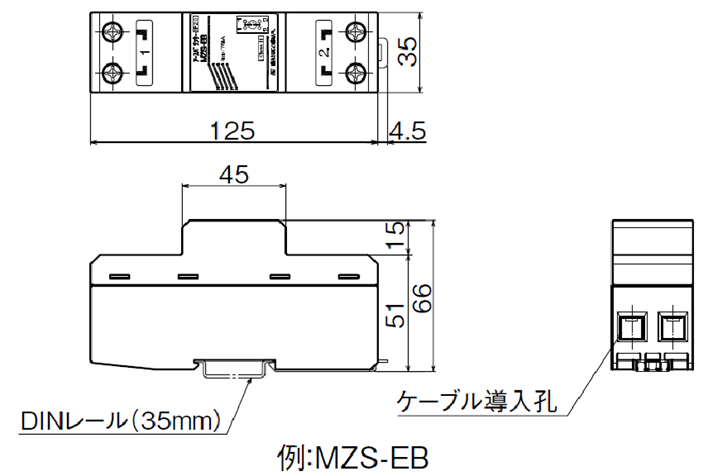

Appearance diagram, Circuit diagram:
Item | Measurement conditions | Performance | |
MZS-EB | MZS-EBT | ||
Impulse current (limp) | 10/350µs | 75kA | 100kA |
Nominal discharge current (ln) | 8/20µs | 20kA | 100kA |
Insulation resistance | DC350V | 1000MΩabove | ─ |
DC100V | ─ | 100MΩabove | |
Voltage protection level (Up) | Based on IEC | 1.5 kV or less | |
