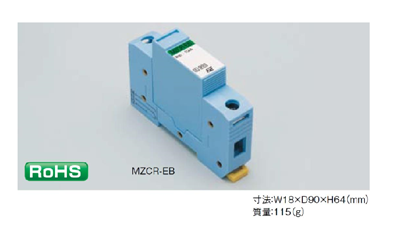

MZCR-EB , MZCR-EBN

RoHS compliant

Inquire Now Online Message

Conforming standards

RoHS compliant

Features:

IEC test class II test equivalent

Maximum supported impulse discharge current 10kA (direct lightning wave type 10/350µs)

DIN rail mountable（35mm）

The EB type is a Y-shaped plug-in type, and the EBT type is a screw type

Applications:

Equipotential to ground (elimination of potential differences)

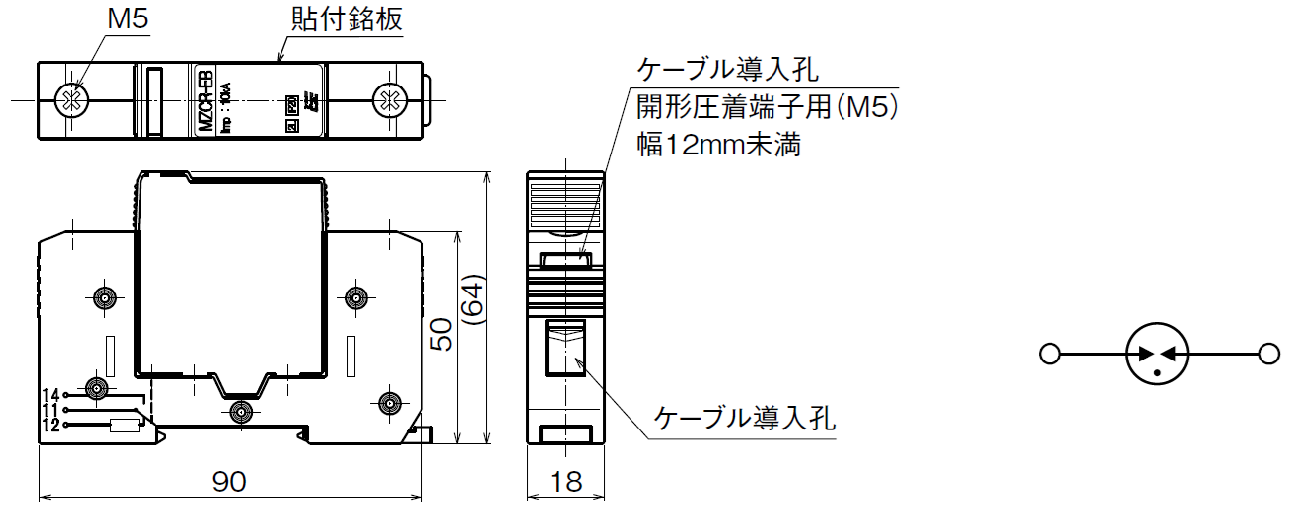

Appearance diagram, Circuit diagram:

[(M0FK$[LFEWNI$SUR]%M

Item	Measurement conditions	Performance
Impulse current (limp)	10/350µs	10kA
Nominal discharge current (ln)	8/20µs	60kA
Insulation resistance	DC500V	100MΩabove
Voltage protection level (Up)	Based on IEC	1kV or less

● MZCR-EB 仕样书（下载资料）Down
