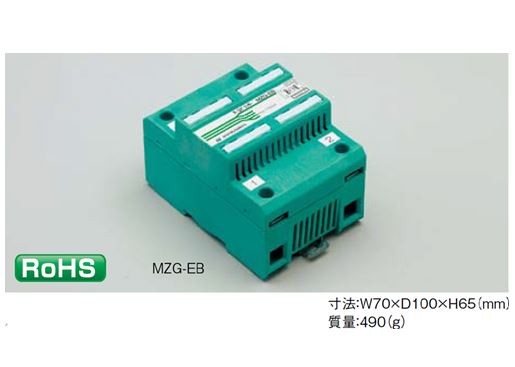

MZG-EB

RoHS compliant

Inquire Now Online Message

Conforming standards:

RoHS compliant

Features:

Maximum supported impulse discharge current 100kA (direct lightning wave type 10/350µs)

DIN rail mountable（35mm）

Applications:

Equipotential to ground (elimination of potential differences)

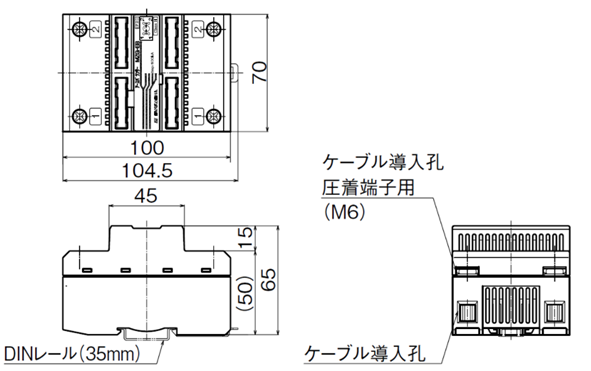

Appearance diagram, Circuit diagram:

Item	Measurement conditions	Performance
DC discharge voltage	500V/S	700±160V
Insulation resistance	DC250V	100MΩabove
Impulse current (limp)	10/350µs	100kA
Nominal discharge current (ln)	8/20µs	20kA
Voltage protection level (Up)	Based on IEC	1.5 kV or less
