Direct lightning strike countermeasure system

Lightning protection system 600
This product is a high insulation lightning protection system. It uses the lead down (lightning protection cable) with pulse resistance voltage of 600kV (1.2/50μs).

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

This product is a high insulation lightning protection system. It uses the lead down (lightning protection cable) with pulse resistance voltage of 600kV (1.2/50μs), so that the instantaneous high current such as direct lightning strike does not flow through the tower or the reinforcing bar of the building, and is released smoothly in the ground pole buried in the ground place of the equipment.

※ (The lightning protection cable is not sold separately and needs to be sold as a whole with the lightning protection system, so please feel free to contact us if you want the lightning protection system 600)

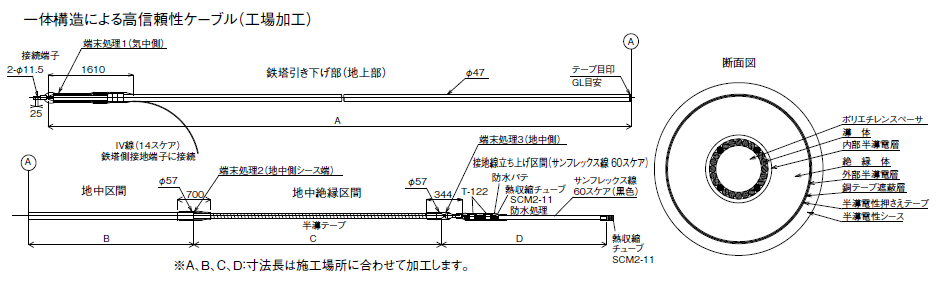

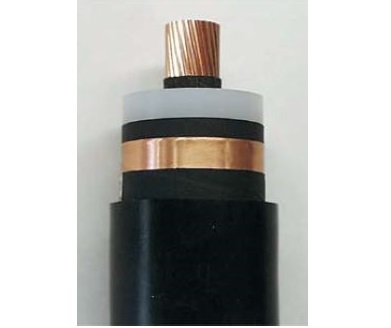

External view

KXEN8E1OZGABQ5(LEH5P$K

Item				Performance	Note
Maximum DC conductor resistance（20℃）				0.329Ω/km
Minimum insulation resistance				3,000MΩ・km
Commercial frequency voltage resistant				90kV・10min
Impulse withstand voltage				600kV
Tensile strength and elongation	Iinsulator	Normal temperature	Tensile strength	10MPa（1.02kg/mm²）or more	23±5℃
		Normal temperature	Extension	350% or more	23±5℃
		Heated	Tensile strength	Preheated 80% or more	90±2℃/96 hours
		Heated	Extension	Preheated 65% or more	90±2℃/96 hours
	Normal temperature	Normal temperature	Tensile strength	10MPa（1.02kg/mm²） or more	23±5℃
		Normal temperature	Extension	200%or more	23±5℃
		Heated	Tensile strength	85%or more	100±2℃/48 hours
		Heated	Extension	80%or more	100±2℃/48 hours
Heating deformation			Insulator	Thickness reduction rate 10%or less	75±3℃/30min
Heating deformation			Peel	Thickness reduction rate 50%or less	120±3℃/30min
Cold tolerance			Peel	-10℃Sample non damage	-0℃/2.5min
Oil resistance (peel)	After immersion		Tensile strength	80%or more
Oil resistance (peel)	After immersion		extension	50% or more
Allowable bending radius of the cable				650mm
Weight				2.15kg/m
