TSS (Lightning monitoring system)

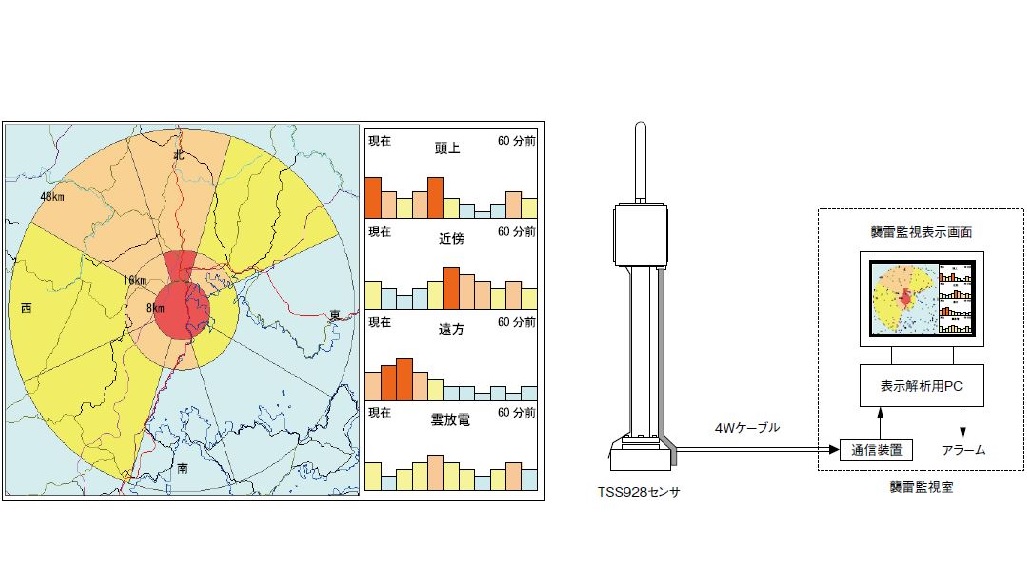

TSS is a lightning alarm sensor that captures lightning strikes and informs of the danger. Receive signals from lightning and magnetic fields. According to 3 distance information and 8 azimuth information, a wide range of lightning occurrence areas can be mastered.

The use environment of the sensor

Temperature range :-50℃ ~ 50℃, temperature range: 0% ~ 100%, maximum wind pressure :60m/s

Sensor size

Height :157cm, width :30cm, weight :15.9kg

Sensor power supply

Voltage :AC90 ~ 120V, power :100W

Lightning monitoring function of sensor

Detecting type of lightning: lightning strike and cloud discharge

The distance of lightning strikes is classified as follows: overhead :0 to 8km, near :8 to 16km, far :16 to 48km

Orientation of lightning strikes: North, Northeast, East, Southeast, South, Southwest, West, Northwest (only near and far lightning strikes will calculate the orientation)

Quantity statistics function: Statistics of each area are collected at specified intervals

(Designated time: 30, 15, 10, 5 points can be selected)
