Lightning Hunter

Features

• Detect the electromagnetic waves (electric field, magnetic field) generated by lightning strikes.

• It has a waveform matching function (standard), performs noise discrimination, and captures electromagnetic waves from lightning strikes.

• Conduct lightning detection within a range of 40 kilometers. (Confirmation can be made at distances of 0 to 20 kilometers, 20 to 40 kilometers, and over 40 kilometers).

• Be able to confirm the direction of the lightning strike (8 directions) North (N), North East (NE), East (E), South East (SE), South (S), South West (SW), West (W), North West (NW)

• Detect the electric field where thunderclouds approach and conduct lightning prediction before lightning occurs.

• Display the information of detected lightning strikes and lightning forecasts using the display software.

Applications

• By connecting alarm devices such as speakers and patrol lights to this device, it can inform the surrounding area that lightning is approaching.

⇒Automatic shutdown of wind power generation equipment.

• When working outdoors at construction sites, mining sites, etc., be aware of the danger of lightning.

⇒Judgment on stopping operations, etc

• Be aware of the lightning hazards of outdoor recreational facilities such as golf courses and amusement parks.

⇒Judgment on the cessation of competitions, games, etc

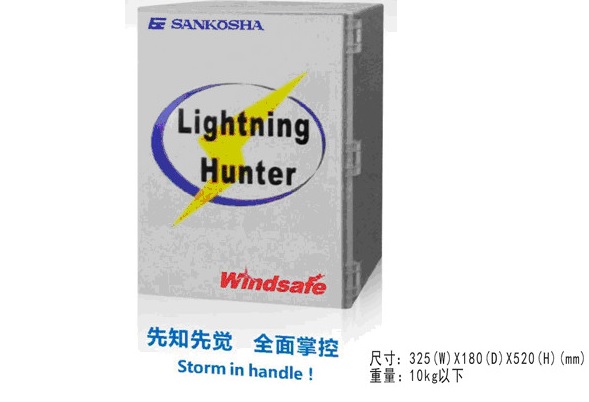

External view

Composition and circuit diagram
