Insulation transformer CVR-2010S type

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

The insulated transformer is used for the inter-line surge protection of the communication and control lines of the computer room, wireless transfer station, mobile phone base station, etc.

The device side and the external cable side are insulated to prevent induced lightning surges from cutting off abnormal voltages caused by rising geodetic potential.

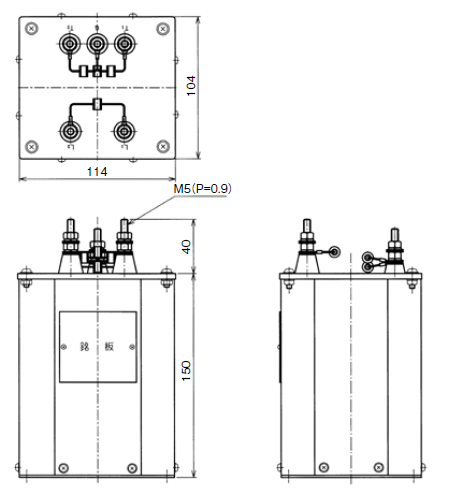

Appearance size drawing

FRE$%8$]@QQ~T%EW)T2OYN6

Item	Test condition	Performance
Main use	—	Supervisory control Control circuit
Withstand voltage	L-T、L- shell	10kV
Withstand voltage	T- shell	3kV
Transmission frequency band	—	16Hz 0.3k～20kHz
Resistance	—	200Ω：200Ω 200Ω：600Ω 600Ω：600Ω
