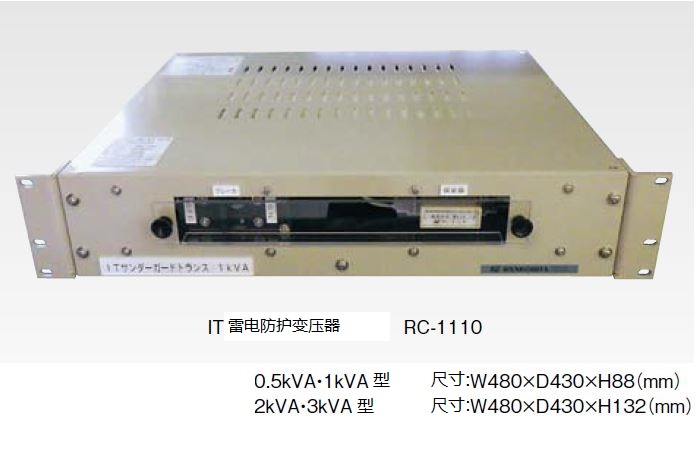

The 19-inch rack-mounted thin lightning protection transformer protects various equipment and power cables from abnormal voltages and currents such as lightning surges applied to the power circuit (single-phase 2-wire type).The slim design enables the product to be placed in a 19-inch rack, making it smaller in size.

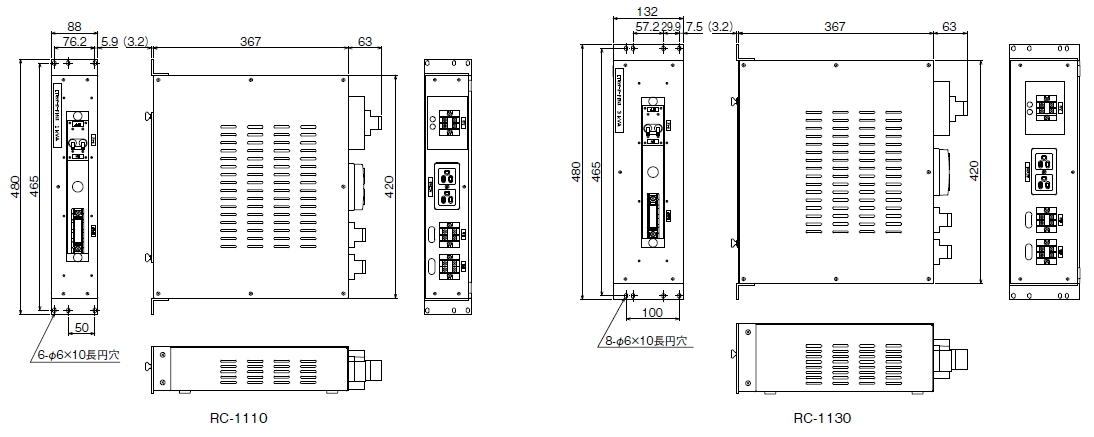

Exterior dimensional drawing

A8JJ_MLGMI`L4DR_~~GU

Item		Performance
Input/output voltage		AC100V、200V(Single-phase) (Optional)
Capacity		0.5kVA、1kVA、2kVA、3kVA(Optional)
Frequency of use		50Hz/60Hz
Insulation resistance（DC500V）		Above 100MΩ
Withstandvoltage	Input ~ Output	AC10kV（1min） strike （1.2/50μs）30kV
	Input ~ Grounding	AC10kV（1min） strike （1.2/50μs）30kV
	Output ~ Ground	AC3kV（1min）
Voltage electrification rate		0.5kVA	1～2kVA	3kVA
Rate of voltage variation		below 5%	below 4%	below 3%
Efficiency		0.5～2kVA above 93%
Efficiency		3kVA above 95%
Surge transfer rate		below 1/1,000
Mass		0.5kVA	1kVA	2kVA	3kVA
		15kg	22kg	32kg	38kg
