Insulation module

Countermeasures of abnormal voltage between floors of buildings.
The insulated transformer module is used for surge protection of communication equipment and communication devices located on different floors in the building. It consists of the ability to remove direct current flowing into metal communication lines.

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

The insulated transformer module is used for surge protection of communication equipment and communication devices located on different floors in the building. It consists of the ability to remove direct current flowing into metal communication lines.The flow consists of an insulated transformer and a distribution frame equipped with an insulated transformer.

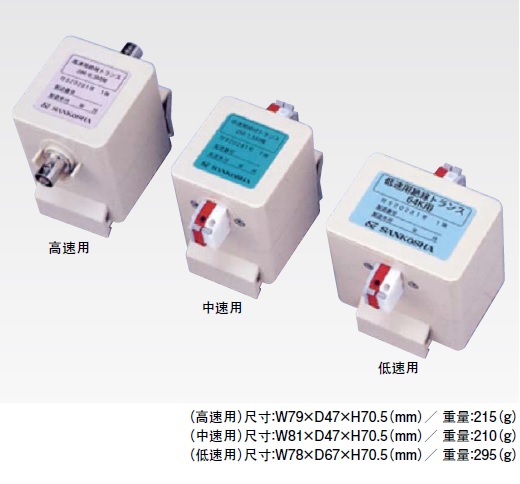

Appearance drawing

HNAWD$W6%)M[(NCS92YRC(N

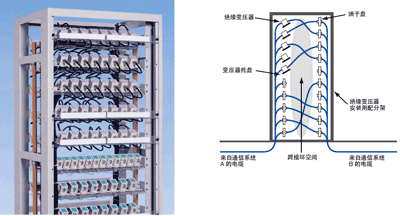

Example composition

I0F6~D6M(1OIFPR%6QF80C

Item	Performance
	For high speed C-30MS50	Medium speed C-8MS50				For low speed C-400KS50
Use frequency band	100k～30MHz （≦0.5dB）	10k～8MHz （≦0.5dB）				500～400kHz （≦0.5dB）
Balance degree	—	10kHz	2MHz	8MHz		500Hz	64kHz	400kHz
		≧85dB	≧50dB	≧45dB		≧85dB	≧60dB	≧50dB
Impedance	75Ω	110Ω
Withstand voltage	1.2/50μs、50kV
Connector shape	BNC	No screws			No screws
