SPD for special signal light-emitting devices

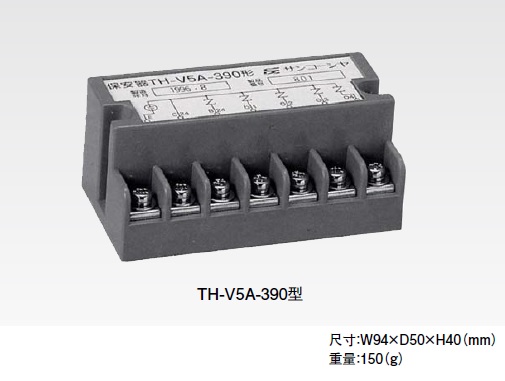

TH-V5A-390
This type of security device can protect 2 ~ 4 special signal light emitting device controllers of railway equipment from abnormal voltage shocks such as lightning surges.

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

This type of security device can protect 2 ~ 4 special signal light emitting device controllers of railway equipment from abnormal voltage shocks such as lightning surges.

Item			Performance
The maximum line voltage is B24 terminal to C24 terminal			DC31Ｖ
Protection level	Varistor C24 terminals- B24, 01,02,03,04 terminals	Varistor voltage Current value 1mA	39（35～43）V
		Limit voltage Current value 20A	Below 80V
		Maximum impulse current tolerance	8/20μs2kA 1times （10/200μs 450A 1times）
		The change rate of the voltage after the test	±10％
	C24 terminal to E terminal of arrester	Dc discharge starting voltage	1.1kV±220V
		The initial impulse discharge voltage is 10/200μs and 3kV is applied	Below 2kV
		Impulse cycle current tolerance	10/200μs 500A 200 times (1 minute intervals)
		Dc discharge starting voltage after test	1.1kV±300V
		Impulse current tolerance	10/200μs10kA 1 times
Withstand voltage		Between each terminal and the guard mounting plate	AC3kV 1 min
