Safety device built-in relay connector

Safety device built-in relay connector
As a railway signal equipment, ATS-P ground antenna induced lightning countermeasures are used to connect the connector part of the cable, Which is manufactured by Japan Aviation Electronics Industry, Ltd(日本航空電子工業株式会社) for railway signals.

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

As a railway signal equipment, ATS-P ground antenna induced lightning countermeasures are used to connect the connector part of the cable, which is manufactured in the Japanese avionics industry for railway signals

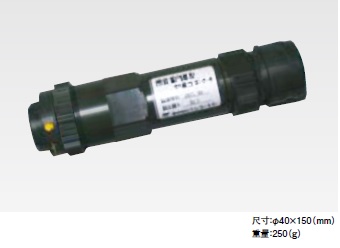

Waterproof type relay connector (JK3JG08PSH) "is installed on the power supply security device (my company's AV-11 type), is a security device built-in type relay connector.

Item		Performance
Dc discharge starting voltage		400V±100V
The initial impulse discharge voltage is 10/200μs at 3kV		800V below
Limit voltage 10/200μs 200A		550V below
Impulse cycle current tolerance		10/200μs 200A 50 times
Maximum impulse current tolerance		10/200μs 500A
Socket side and pin side conduction	Core numbers 1 # and 5 #	turn-on
Withstand voltage	Each insert pin and shell	AC 1.5kV 1min
