SPD AP-NER Type

SPD AP-NER Typ

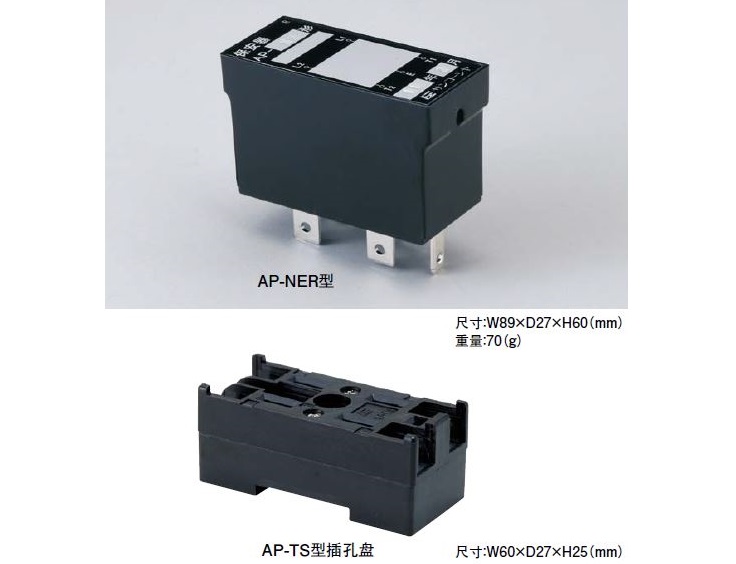

These SPD can protect the human body and equipment from abnormal voltage shocks induced on transmission
lines such as railway signals and communication cables. The wiring terminal is composed of screw and welding common terminal.
(This product is used in combination with AP-TS type jack disk.)

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

These SPD can protect the human body and equipment from abnormal voltage shocks induced on transmission

lines such as railway signals and communication cables. The wiring terminal is composed of screw and welding common terminal.

(This product is used in combination with AP-TS type jack disk.)

Item		Performance
Operating line voltage		24V
Upper limit voltage of operating line		27V
Zener voltage		36V
Frequency band		DC～300kHz（Zo=150Ω）
Action attenuation		1.0dB以下
Dc discharge starting voltage L1-E or L2-E		350V±15％
Shock protection level	Balanced line	Below 10V on the line side and below 1kV on the ground side (Applied at 10/200μs · 10kV)
	Unbalanced line	54V down on line side (applied 10/200μs · 1kV)
