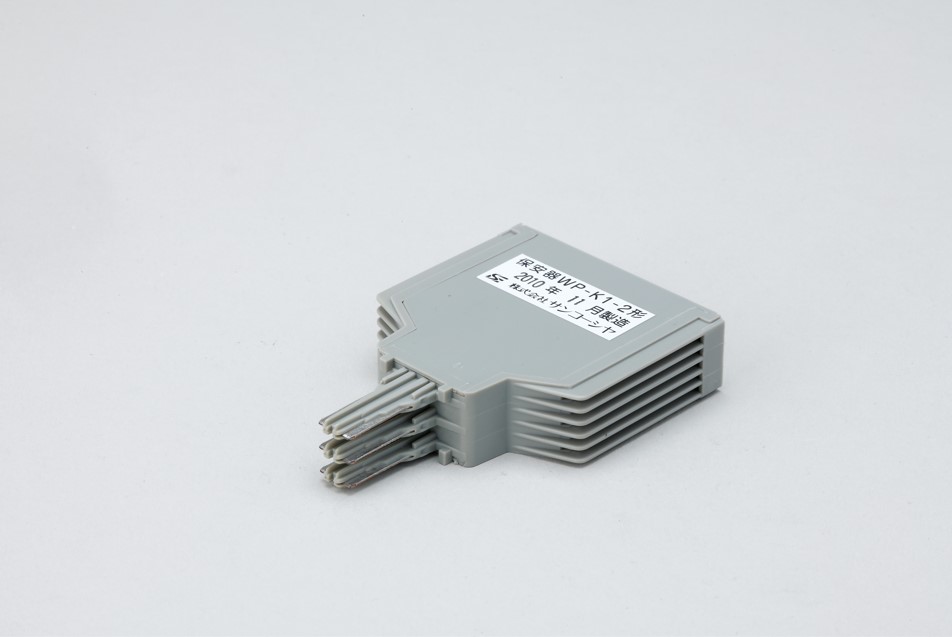

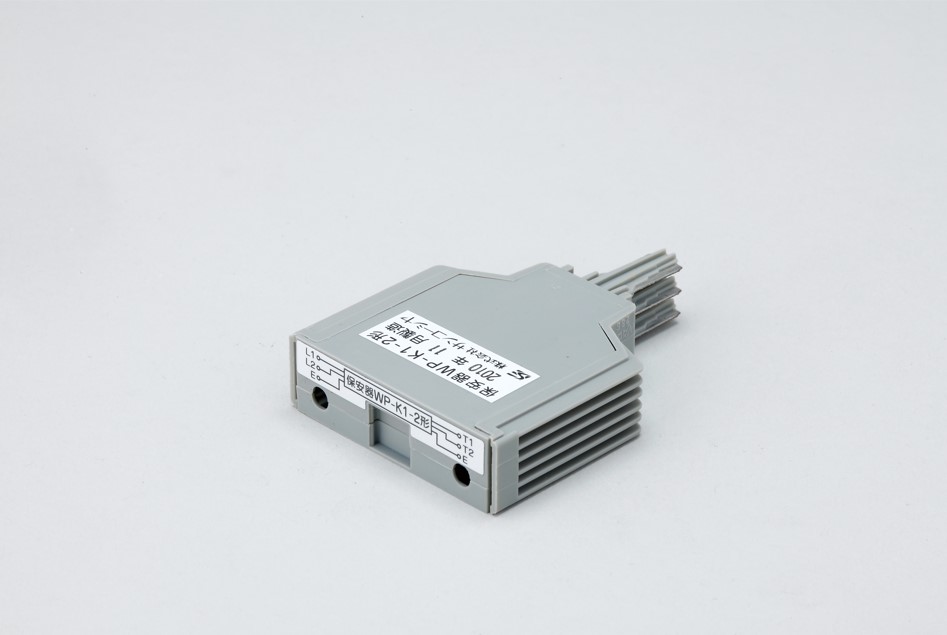

SPD for WAGO Terminal used

WP-K [ ]
WP-K [ ] - [ ]
Installed in the main distribution panel of WAGO spring module
Protect equipment from abnormal voltage surges induced by power lines and other factors.

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

Installed in the main distribution panel of the WAGO spring module, it protects the equipment from abnormal voltage surges induced by power lines and other factors.

Item	Performance
	WP-K1 type	WP-K2 type	WP-K1-2 type	WP-K2-2 type
Number of lines	1	2	1	2
Nominal line voltage	AC110V、DC150V		AC200V
Maximum allowable line voltage	AC240V、DC225V		AC275V、DC350V
Shock protection level	800V below（10/200μs 3kV exert）		1kV below（10/200μs 3kV exert）
DC.discharge starting voltage	280V above		550V±110V
Limiting voltage	500V below（10/200μs 200A）		900V below（10/200μs 200A）
Size（mm）※	W50×D15×H50	W50×D25×H50	W50×D15×H50	W50×D25×H50
Mass（g）	25	42	26	42
