MZPW Series (CRCC approved)

IEC 61643-11 compliant
RoHS compliant
CRCC approved (TB/T2311-2017,TB/T3074-2017)

Inquire Now Online Message

MZPW-S385/MZPW-S275/MZPW-S75

Features

Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)

Deterioration display function mounted

(warning contact output terminal attached) Plug-in type

DIN rail mountable (35ｍｍ)

Round type crimped terminal for M4 (width less than 12mm)

Applications

Low voltage power supply circuits in switchboards anddistribution boards (AC75V/AC220V/AC380V)

Power supply circuits in control equipment (AC75V/AC220V/AC380V)

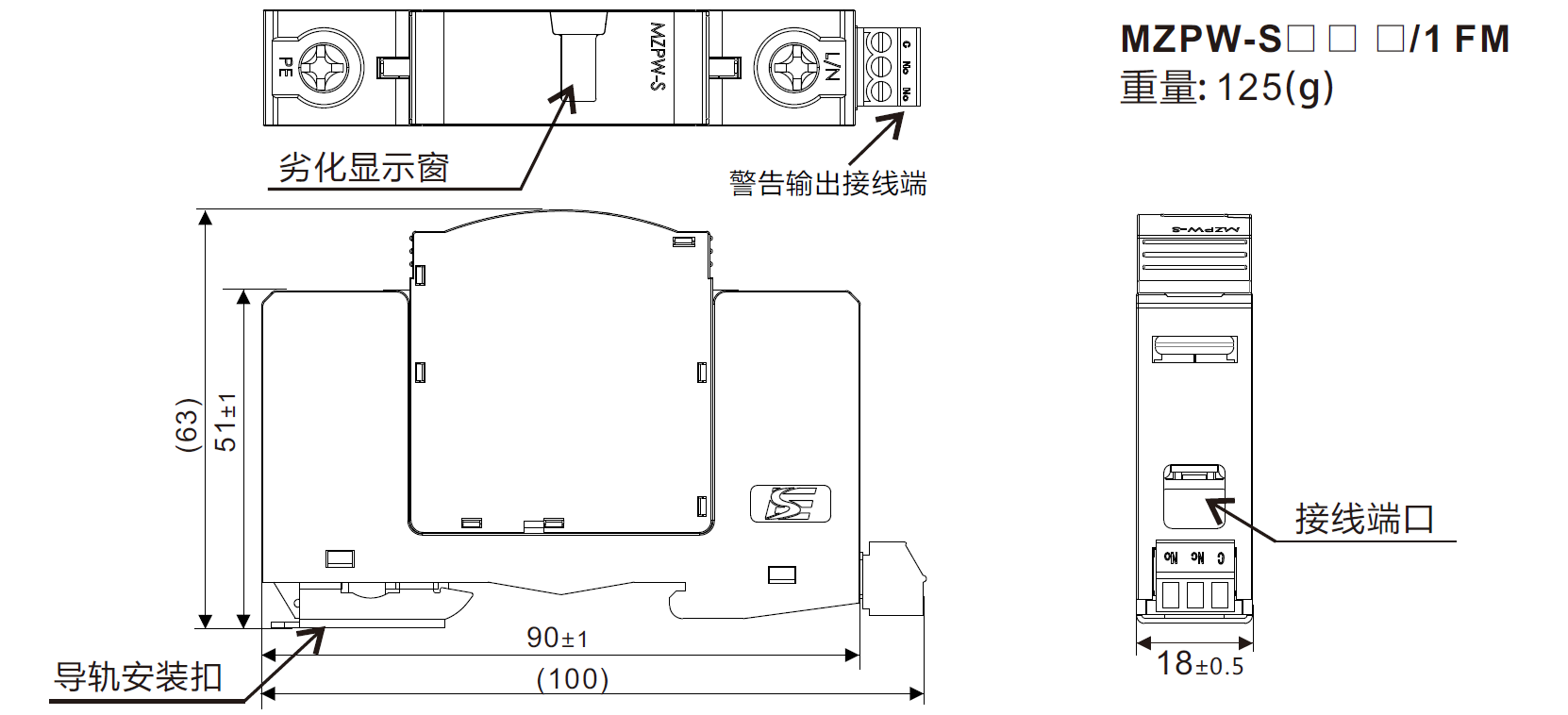

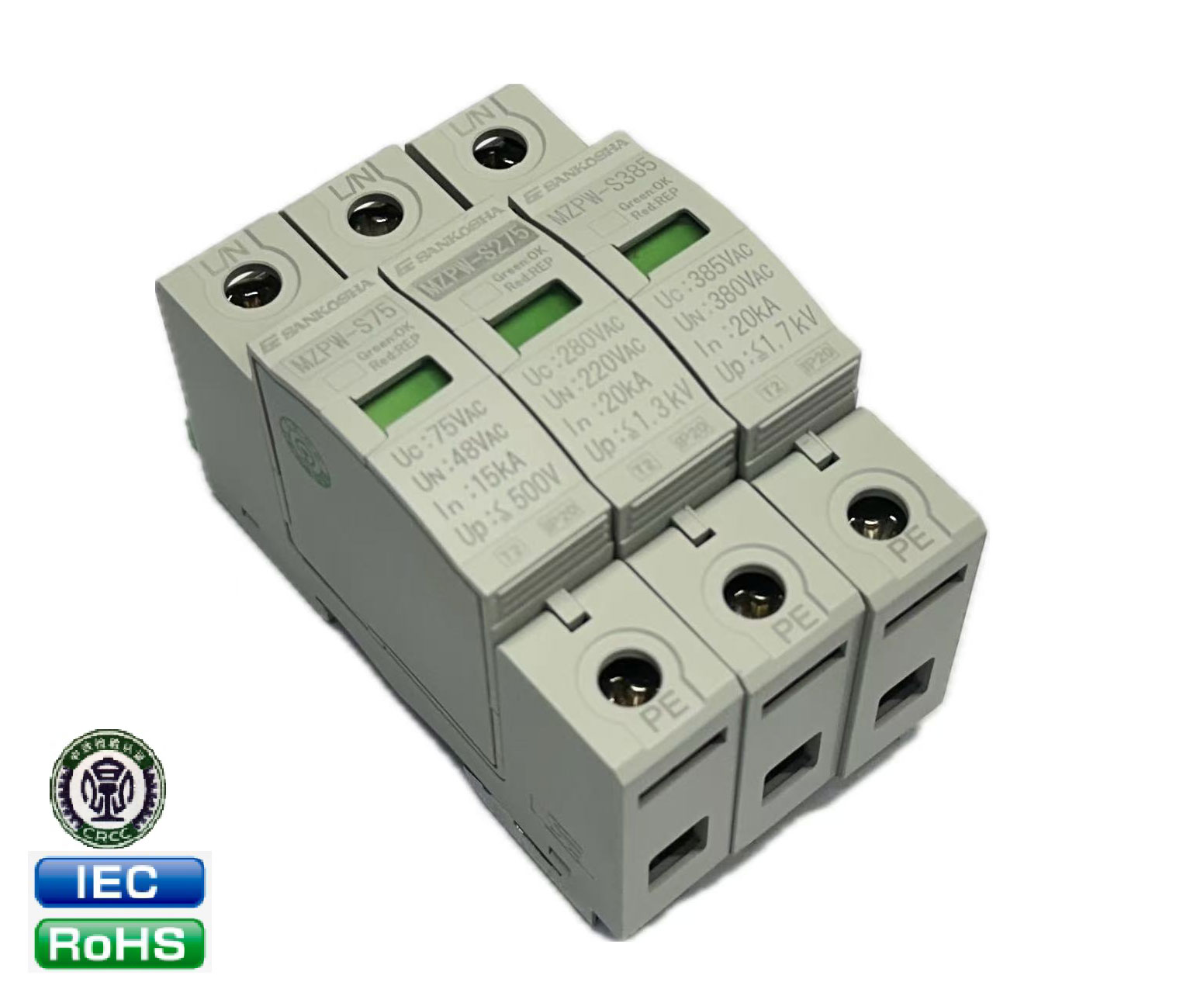

External view

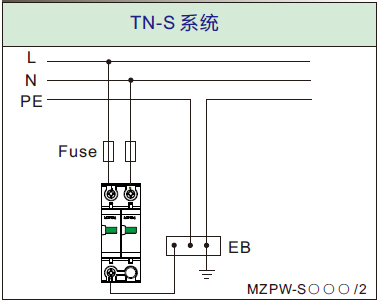

Installation examples

Item	Measurement condition	Performance
Item	Measurement condition	MZPW-S75	MZPW-S275	MZPW-S385
Maximum continuous operation voltage (Uc)	-	AC75V(50/60Hz)	AC280V(50/60Hz)	AC385V(50/60Hz)
Nominal voltage(UN)	-	AC48V(50/60Hz)	AC220V(50/60Hz)	AC380V(50/60Hz)
Maximum discharge current (Imax)	8/20µs	40kA	40kA	40kA
Nominal discharge current (In)	8/20µs	15kA	20kA	20kA
Voltage protection level (Up)	8/20µs	600V or less	1.3kV or less	1.7kV or less
