MZNR-P380/MZNR-P220/MZNR-P24
Features
Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)
Deterioration display function mounted
(warning contact output terminal attached) Plug-in type
DIN rail mountable (35mm)
Round type crimped terminal for M4 (width less than 12mm)
Applications
Low voltage power supply circuits in
switchboards anddistribution boards (DC24V/AC220V/AC380V)
Power supply circuits in control equipment (DC24V/AC220V/AC380V)
MZNR-S380/MZNR-S220/MZNR-S110/MZNR-S60
Features
Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)
Deterioration display function mounted
(warning contact output terminal attached)
Plug-in type
DIN rail mountable (35mm)
Round type crimped terminal for M4 (width less than 12mm)
Applications
Low voltage power supply circuits in
switchboards anddistribution boards (AC48V/AC110V/AC220V/AC380V)
Power supply circuits in control equipment (AC48V/ AC110V/AC220V/AC380V)

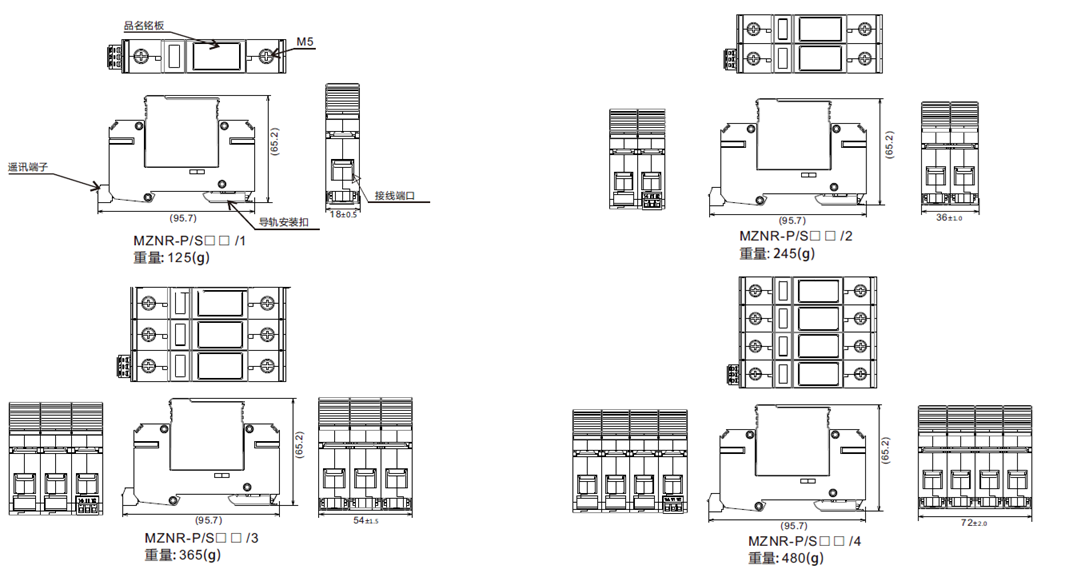

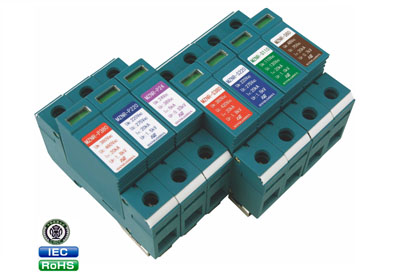

External view

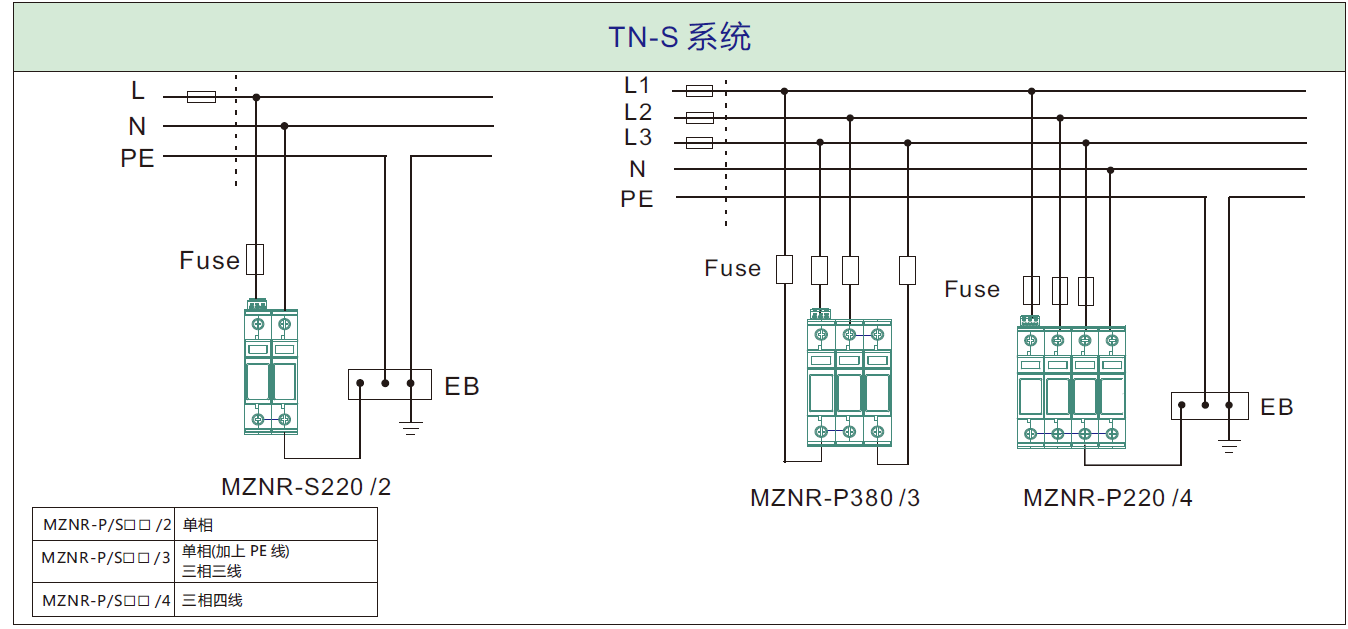

Installation examples
Item | Measurement condition | Performance | ||
MZNR-P24 | MZNR-P220 | MZNR-P380 | ||
Maximum continuous operation voltage (Uc) | AC(50/60Hz) ※Except P24 | DC38V | 275V | 460V |
Nominal voltage(UN) | AC(50/60Hz) ※Except P24 | DC24V | 220V | 380V |
Nominal dischargecurrent (In) | 8/20µs | 5kA | 20kA | |
Maximum discharge current (Imax) | 8/20µs | 10kA | 40kA | |
Voltage protection level (Up) | 8/20µs | ≦0.33kV | ≦1.5kV | ≦1.8kV |
Item | Measurement condition | Performance | |||
MZNR-S60 | MZNR-S110 | MZNR-S220 | MZNR-S380 | ||
Maximum continuous operation voltage (Uc) | AC(50/60Hz) | 75V | 130V | 275V | 420V |
Nominal voltage(UN) | AC(50/60Hz) | 48V | 110V | 220V | 380V |
Nominal discharge current (In) | 8/20µs | 20kA | |||
Maximum discharge current (Imax) | 8/20µs | 40kA | |||
Voltage protection level(Up) | 8/20µs | ≦0.7kV | ≦1.0kV | ≦1.5kV | ≦1.8kV |
