CLP-H3[ ] Series (CRCC approved)

Conforming standards
IEC 61643-11 compliant
RoHS compliant
CRCC approved (TB/T2311-2017,TB/T3074-2017)

Inquire Now Online Message

CLP-H3b/CLP-H3c/CLP-H3d

Features

High withstand capacity suitable for multiple lightning zones

Plug-in type

DIN rail mountable (35ｍｍ)

Certified explosion-proof products available

Round type crimped terminal for M3 (width less than 6.6mm)

Applications

Fire alarm

wind speed meter

potentiometer

slow pulse

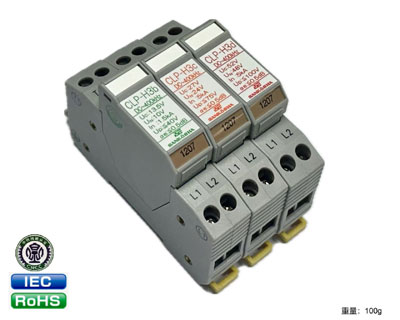

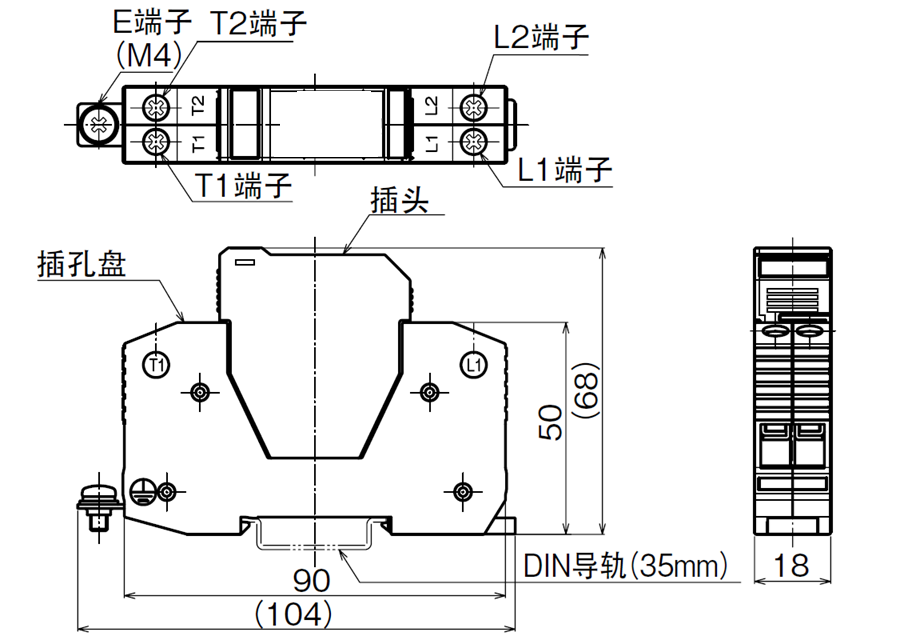

External view

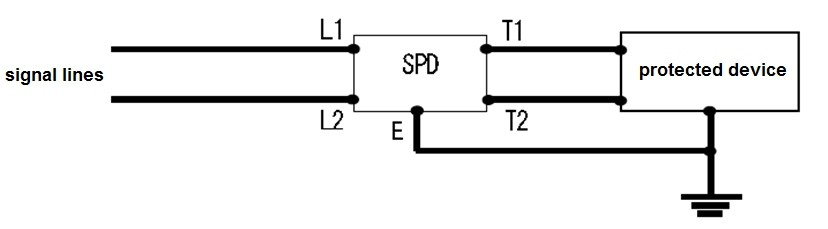

Installation examples

2PCIKU%ZPL[13J~T_0[R8J4

Item	Measurement condition	Performance
Item	Measurement condition	CLP-H3b	CLP-H3c	CLP-H3d
Nominal voltage(UN)	－	DC10V	DC24V	DC48V
Maximum continuous operation voltage (Uc)	－	DC13.5V	DC27V	DC52V
Nominal discharge current (In)	8/20μs	3kA (singlet line1.5kA×2)	10kA(singlet line 5kA×2)
Maximum discharge current (Imax)	8/20μs	20kA (singlet line 10kA×2)
Serier resisteance	(100mA)	5Ω±10%
Voltage protection level (Up)	(Based on IEC)	≤40V	≤75V	≤100V
