MZCR series(CRCC approved)

Conforming standards
IEC 61643-11 compliant
RoHS compliant
CRCC approved (TB/T2311-2017,TB/T3074-2017)

Inquire Now Online Message

MZCR-P380/MZCR-P220/MZCR-P24

Features

Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)

Deterioration display function mounted

(warning contact output terminal attached) Plug-in type

DIN rail mountable (35ｍｍ)

Round type crimped terminal for M4 (width less than 12mm)

Applications

Low voltage power supply circuits in switchboards anddistribution boards (DC24V/AC220V/AC380V)

Power supply circuits in control equipment (DC24V/AC220V/AC380V)

MZCR-S380/MZCR-S220/MZCR-S110 /MZCR-S60

Features

Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)

Deterioration display function mounted

(warning contact output terminal attached) Plug-in type

DIN rail mountable (35ｍｍ)

Round type crimped terminal for M4 (width less than 12mm)

Applications

Low voltage power supply circuits in switchboards anddistribution boards (AC48V/AC110V/AC220V/AC380V)

Power supply circuits in control equipment (AC48V/ AC110V/AC220V/AC380V)

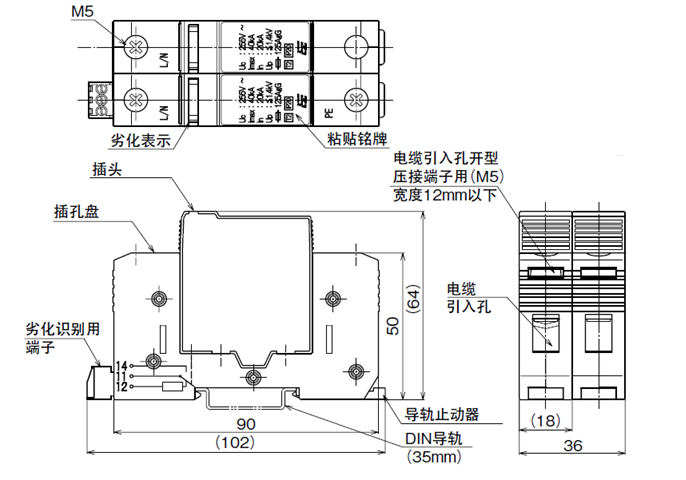

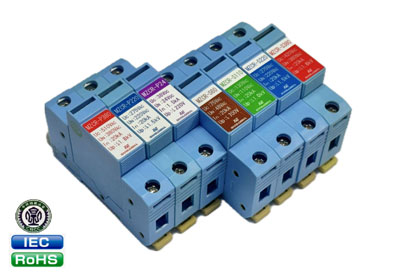

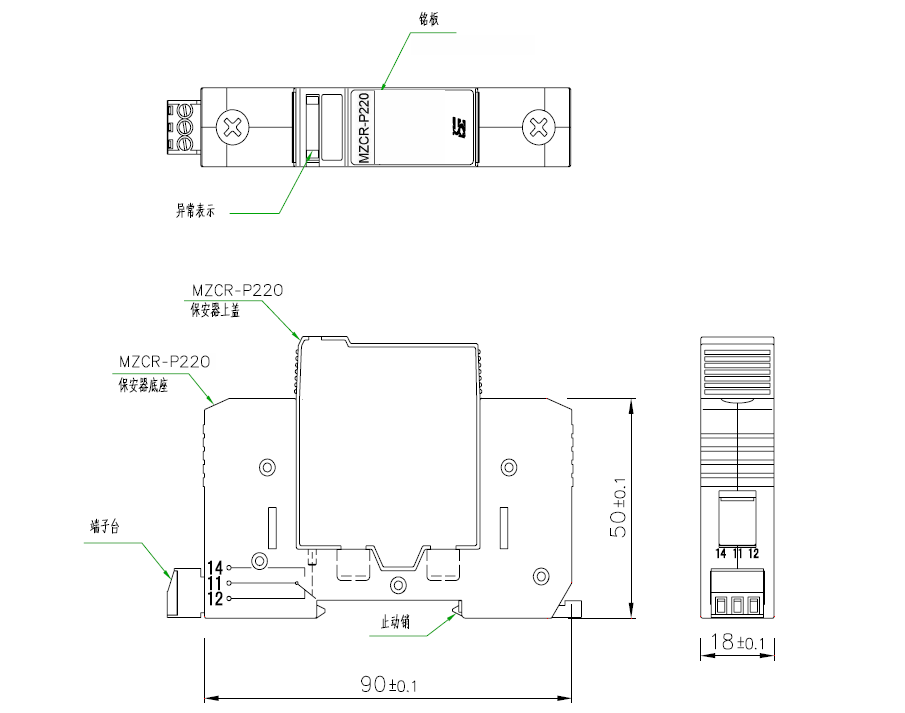

External view

Installation examples

Item	Measurement condition	Performance
Item	Measurement condition	MZCR-P380	MZCR-P220	MZCR-P24
Nominal voltage(UN)	－	AC380V	AC220V	DC24V
Maximum continuous operation voltage (Uc)	－	AC510V	AC275V	DC38V
Nominal discharge current (In)	8/20μs	20kA	20kA	1.5kA
Maximum discharge current (Imax)	8/20μs	40kA	40kA	10kA
Voltage protection level(Up)	Based on IEC	≤1.8kV	≤1.5kV	≤220V

Item	Measurement condition	Performance
Item	Measurement condition	MZCR-S380	MZCR-S220	MZCR-S110	MZCR-S60
Nominal voltage(UN)	－	AC380V	AC220V	AC110V	AC48V
Maximum continuous operation voltage (Uc)	－	AC420V	AC275V	AC130V	AC75V
Nominal discharge current (In)	8/20μs	20kA
Maximum discharge current (Imax)	8/20μs	40kA
Voltage protection level (Up)	Based on IEC	≤1.8kV	≤1.5kV	≤1.0kV	≤700V
