MZS-NPE

IEC ClassI/Ⅱ compliant
IEC 61643-11 compliant
CE Identification products
RoHSⅡcompliant
KEMA authentication

Inquire Now Online Message

Features

Maximum supported impulse discharge current 100kA (direct lightning wave type 10/350µs)

Voltage protection level below 1.5 kV

DIN rail mountable（35mm）

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100V/200V)

Power circuits for various control devices (AC100V/200V)

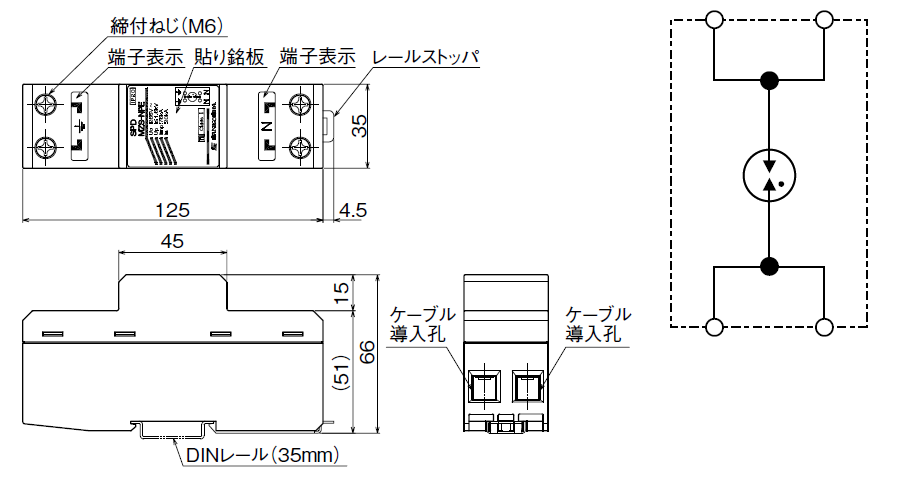

Appearance diagram, Circuit diagram

P$Y~SWTBF02JV8F9XPYZV8A

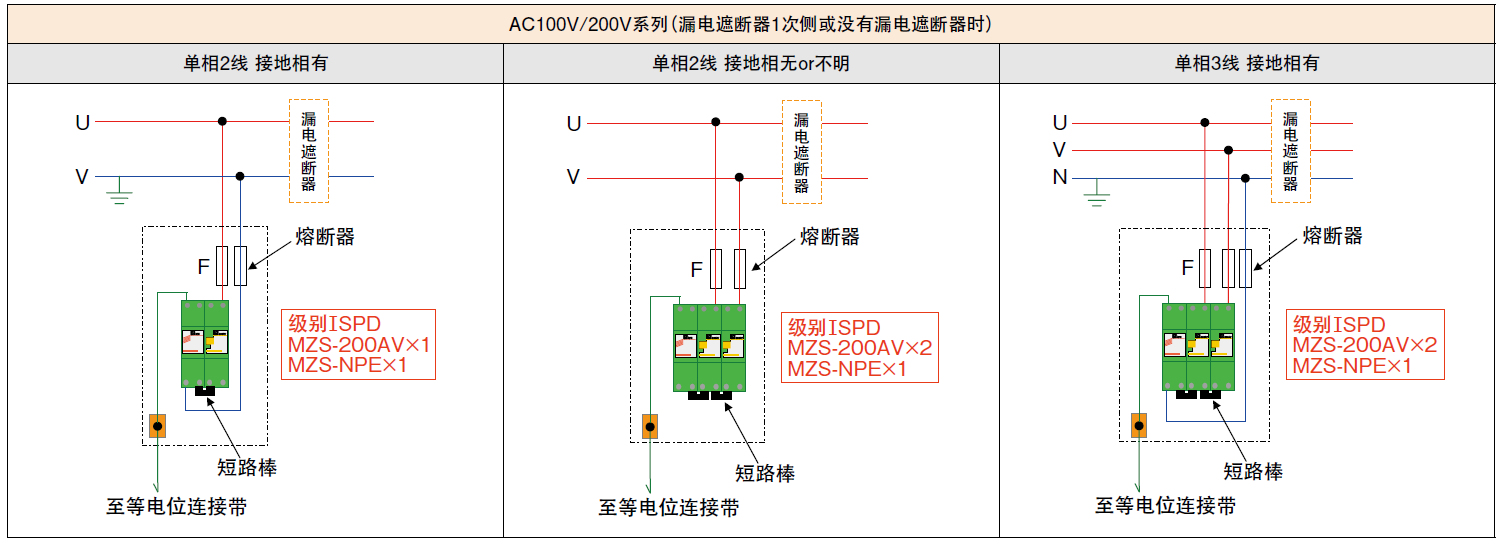

Installation examples (MZS-200AV+MZS-NPE)

Z2@N3~QNOD7_B%W3Z67CC7

Item	Measurement conditions	Performance
Maximum continuous operating voltage (50/60Hz)(Uc)	─	255V
Impulse current (limp)	10/350µs	100kA
Nominal discharge current (ln)	8/20µs	100kA
Voltage protection level (Up)	Based on IEC	1.5 kV or less

● MZS-NPE 仕样书（下载资料）Down
