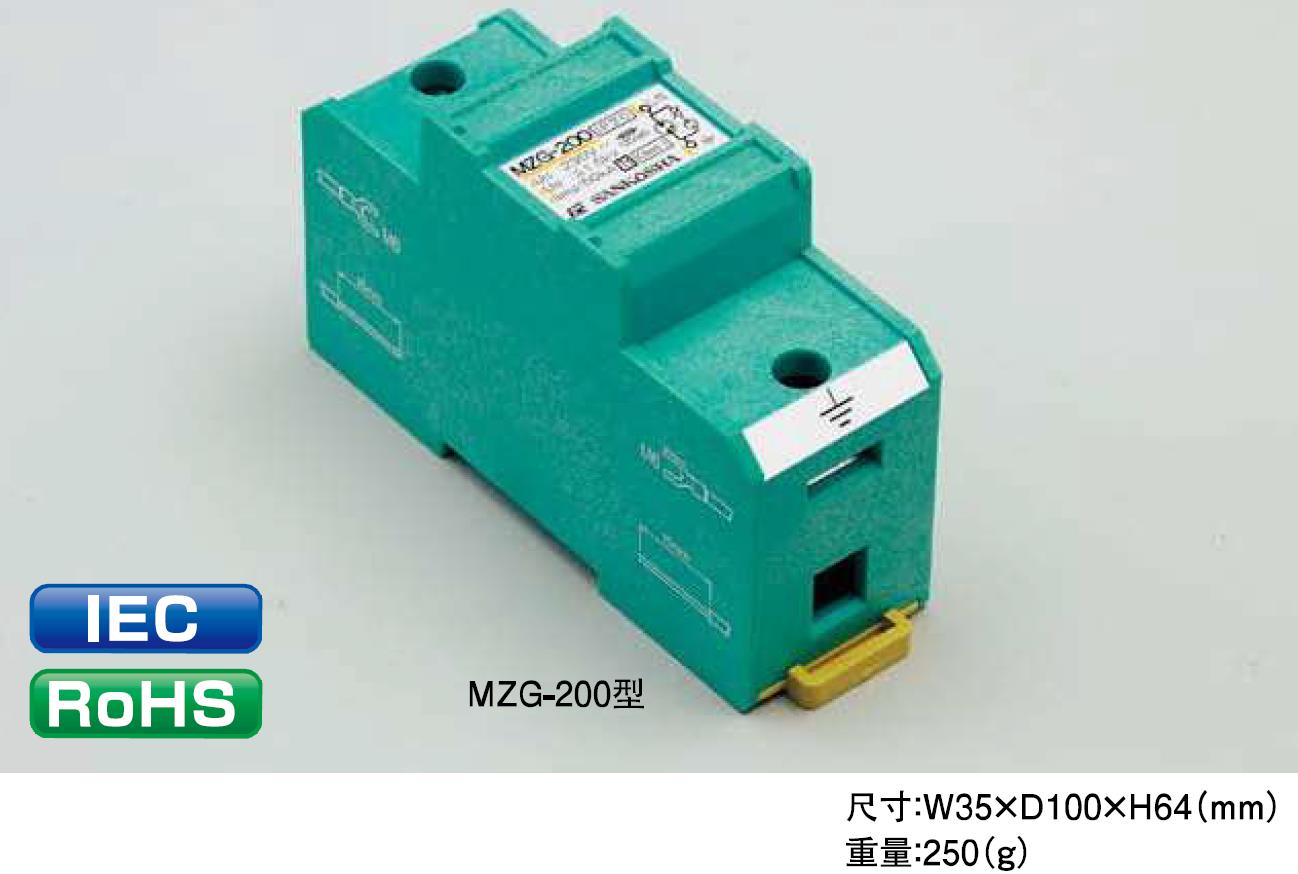

MZG-200

IEC ClassI/Ⅱ compliant
IEC 61643-11 compliant
RoHS compliant

Inquire Now Online Message

Features

Maximum supported impulse discharge current 50kA (direct lightning wave type 10/350µs)

Voltage protection level below 1.5 kV

DIN rail mountable（35mm）

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100V/200V)

Power circuits for various control devices (AC100V/200V)

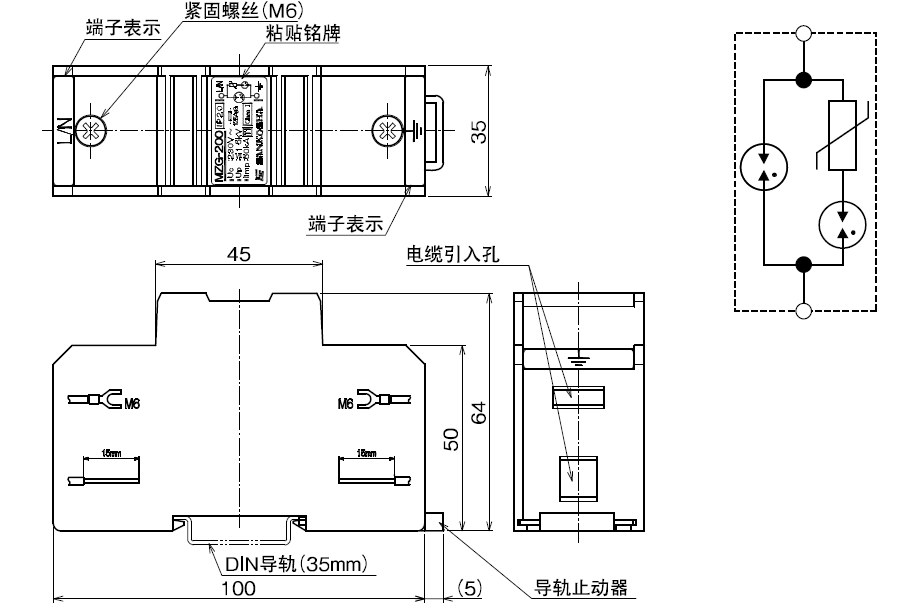

Appearance diagram, Circuit diagram

7DZ[IX8[QPBR34TNX[T5`QL

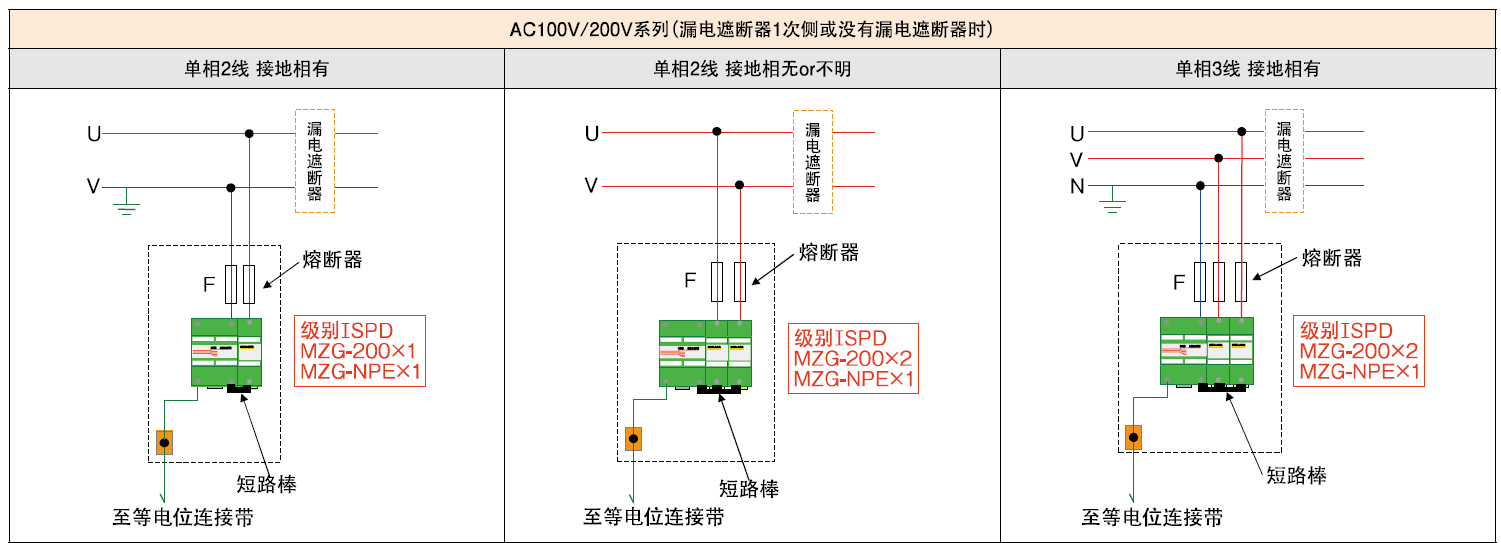

Installation examples (MZG-200+MZG-NPE)

`I75$PDT9E_@[A9WJ1QOF(F

Item	Measurement conditions	Performance
Maximum continuous operating voltage (50/60Hz)(Uc)	─	230V
Impulse current (limp)	10/350µs	50kA
Nominal discharge current (ln)	8/20µs	20kA
Voltage protection level (Up)	Based on IEC	1.5 kVor less

● MZG-200 仕样书（下载资料）Down
