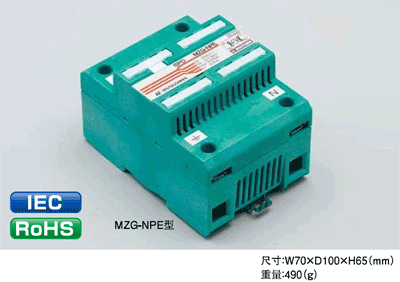

MZG-NPE

IEC ClassI/Ⅱ compliant
IEC 61643-11 compliant
RoHSⅡcompliant

Inquire Now Online Message

Features

Maximum supported impulse discharge current 100kA (direct lightning wave type 10/350µs)

Voltage protection level below 1.5 kV

DIN rail mountable（35mm）

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100/200V)

Power circuits for various control devices(AC100/200V)

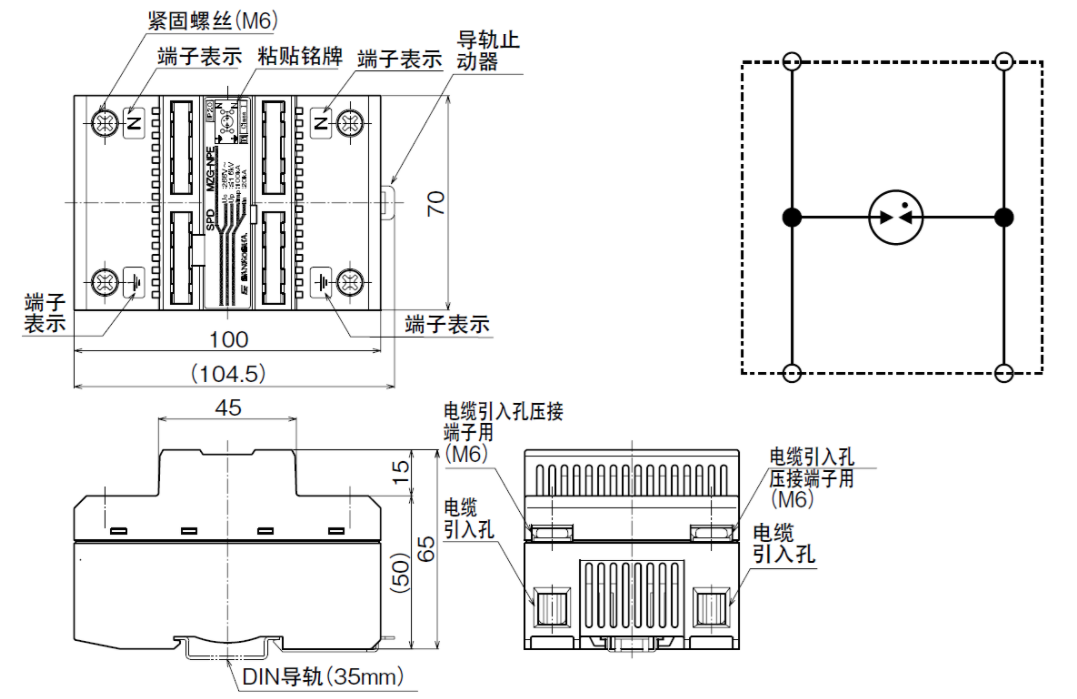

Appearance diagram, Circuit diagram

GQIF042AC18Z976U(W1XQ

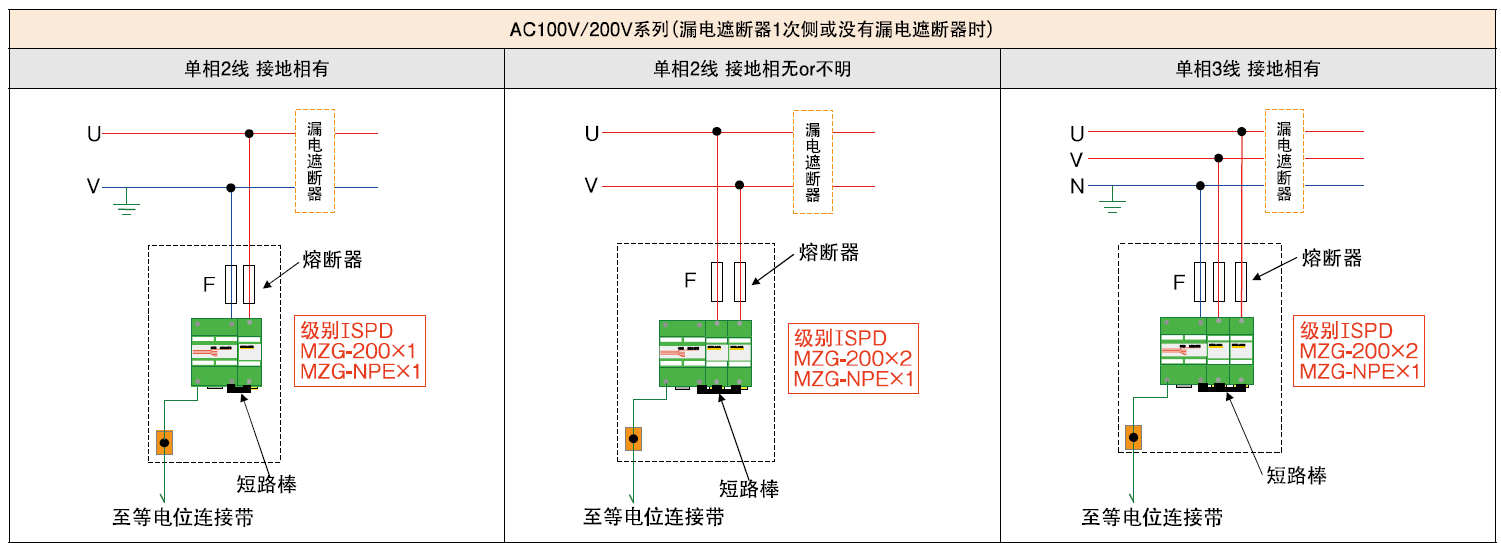

Installation examples (MZG-200+MZG-NPE)

3V26_SZ6K7S020[9WXZU2LN

Item	Measurement conditions	Performance
Maximum continuous operating voltage (50/60Hz)(Uc)	─	255V
Impulse current (limp)	10/350µs	100kA
Nominal discharge current (ln)	8/20µs	20kA
Voltage protection level (Up)	Based on IEC	1.5 kVor less
