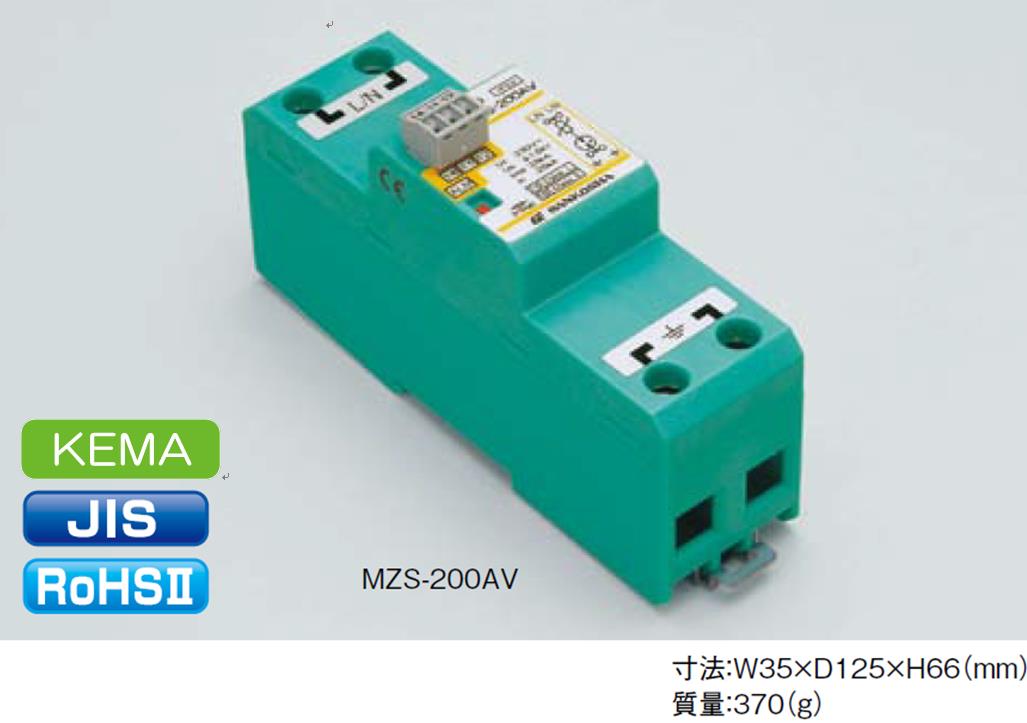

MZS-200AV

IEC ClassI/Ⅱ compliant
IEC 61643-11 compliant
CE Identification products
RoHSⅡcompliant
KEMA authentication

Inquire Now Online Message

Features

Maximum supported impulse discharge current 25kA (direct lightning wave type 10/350µs)

Voltage protection level below 1.5 kV

High freewheeling blocking performance

Deterioration display function(warning contact output terminal attached)

DIN rail mountable（35mm）

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100V/200V)

Power circuits for various control devices (AC100V/200V)

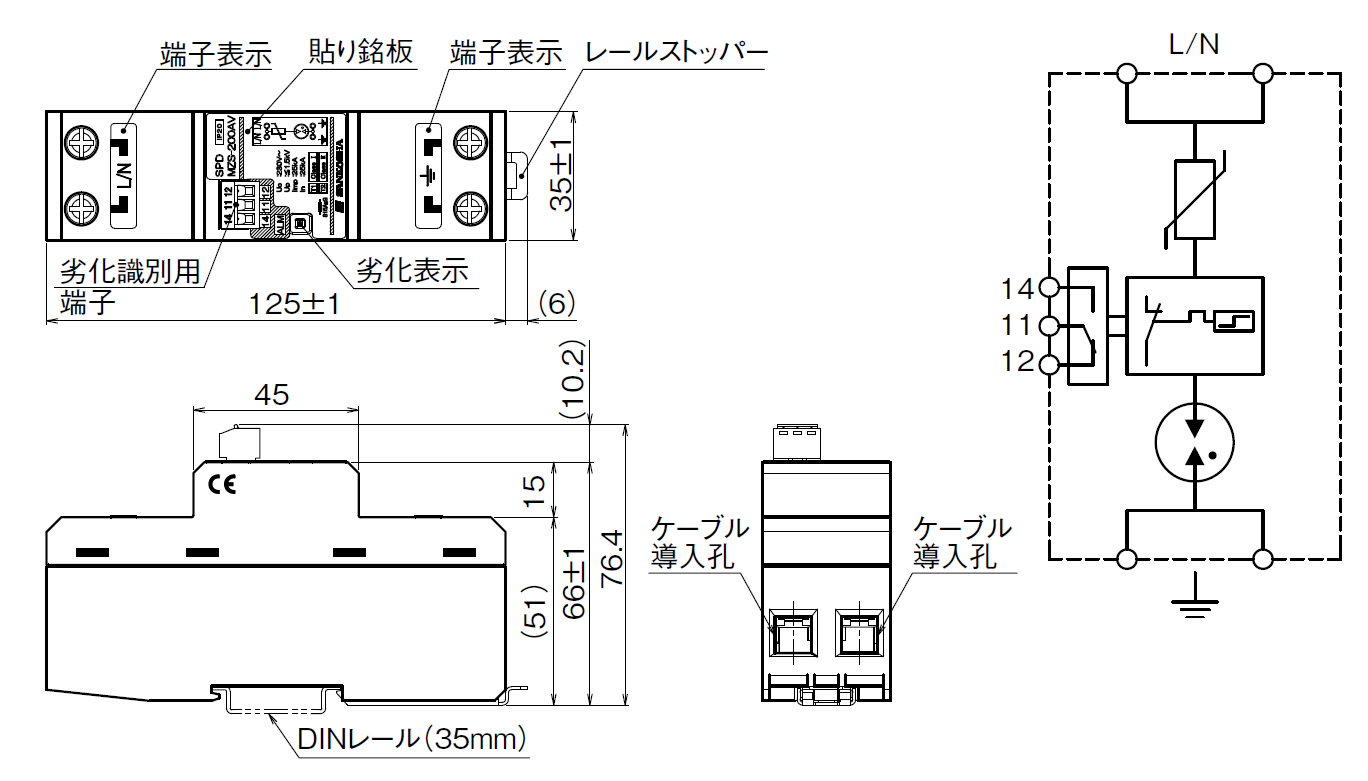

Appearance diagram, Circuit diagram

2CUMX]UQ03D7V[C0QB%R]A

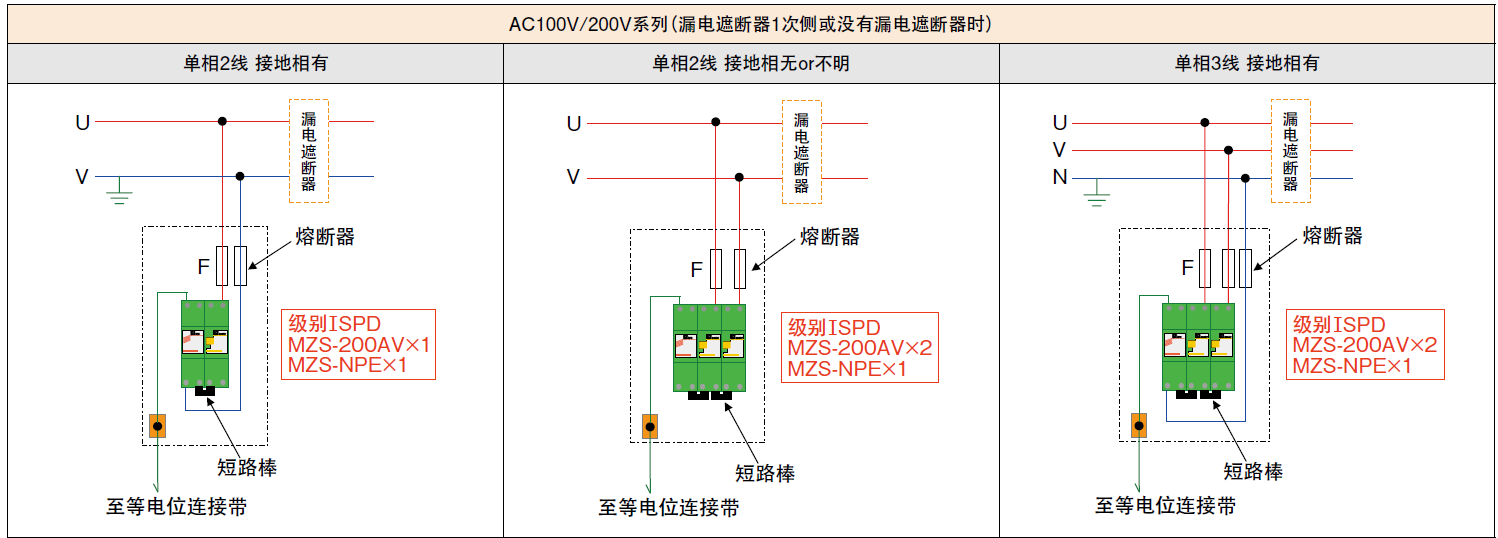

Installation examples (MZS-200AV+MZS-NPE)

8Z_W3ZA`@OF~ODPCQOU6WP6

Item	Measurement conditions	Performance
Maximum continuous operating voltage (50/60Hz)(Uc)	─	275V
Impulse current (limp)	10/350µs	25kA
Nominal discharge current (ln)	8/20µs	25kA
Maximum inrush current(lmax)	8/20µs	100 kA
Voltage protection level (Up)	Based on IEC	1.5 kV or less
