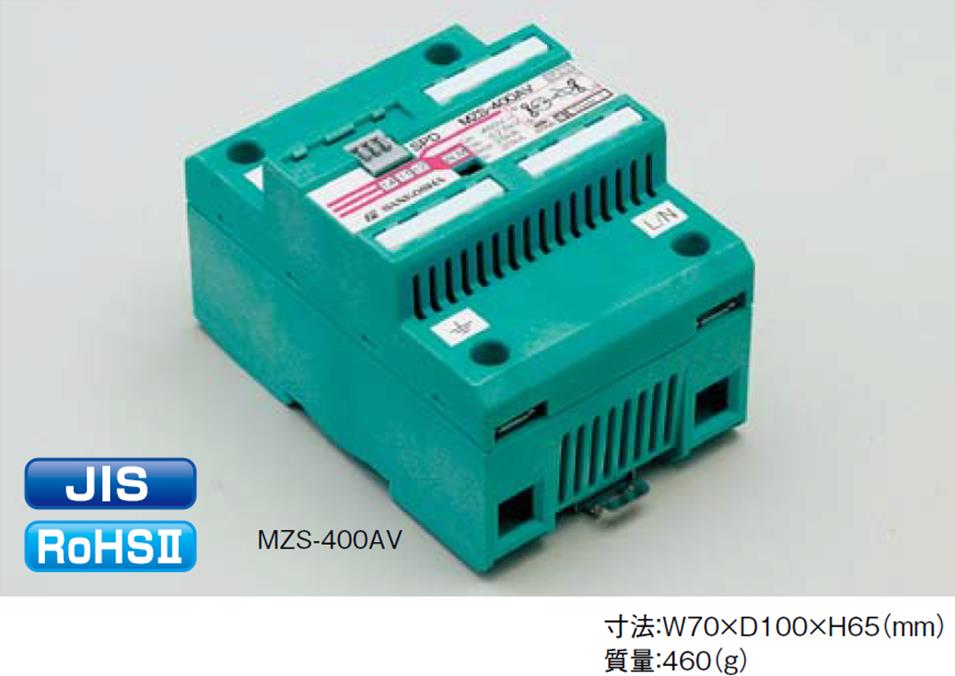

MZS-400AV

IEC ClassI/Ⅱ compliant
IEC 61643-11 compliant
RoHSⅡcompliant

Inquire Now Online Message

Features

Maximum supported impulse discharge current 25kA (direct lightning wave type 10/350µs)

Voltage protection level below 1.5 kV

High freewheeling blocking performance

Deterioration display function(warning contact output terminal attached)

DIN rail mountable（35mm）

Patented technology products

Applications

Low-voltage power supply circuit for switchboards and distributors (AC400V)

Power circuits for various control devices (AC400V)

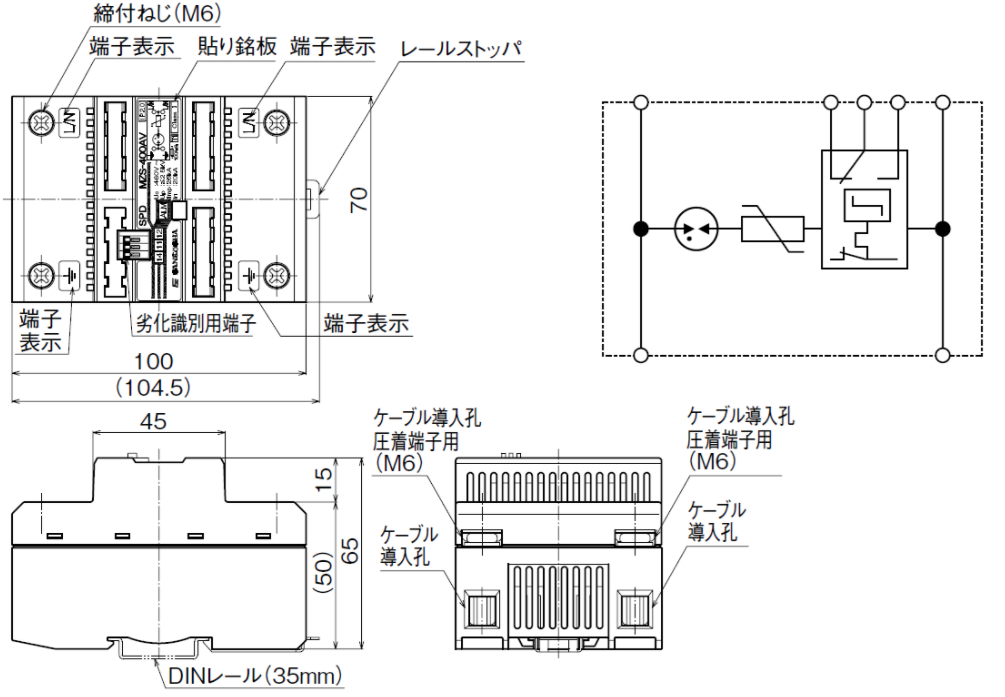

Appearance diagram, Circuit diagram

QEMT@J~LV$))74HV))Q3(S

Installation examples (MZS-400AV+MZS-NPE400)

Item	Measurement conditions	Performance
Maximum continuous operating voltage (50/60Hz)(Uc)	─	460V
Impulse current (limp)	10/350µs	25kA
Nominal discharge current (ln)	8/20µs	20kA
Voltage protection level (Up)	Based on IEC	2.5 kV or less

● MZS-400AV 仕样书（下载资料）Down
