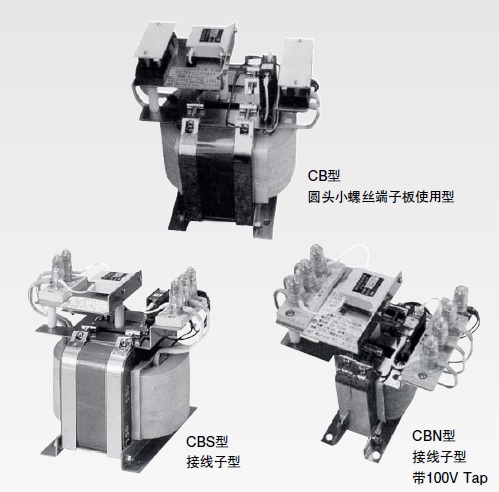

Lightning transformer(with noise countermeasure function)

Surge transfer rate less than 1/1000

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

ME equipment is used in railway signal CTC device, electronic coupling device ATS-P device and other signal equipment, electronic railway crossing device and other railway crossing equipment. This product can protect these ME equipment from the lightning surge impact from the power side, while avoiding the noise from the power supply to cause the equipment to stop working, it has an obvious effect in improving the reliability of the system. It is a lightning resistant transformer with high voltage shielding installed with wire interprotection.

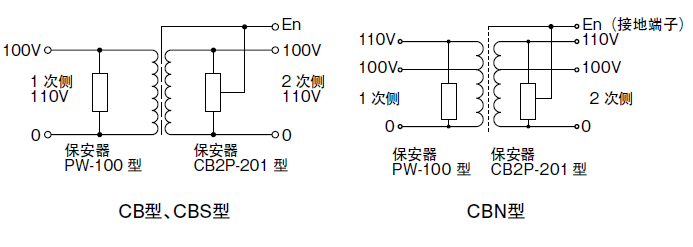

Circuit diagram

(X@99Q_6C_~$`$@FWR)]CO

Item		Performance
Capacity		0.75～20kVA
Frequency		50 / 60Hz
Withstand voltage	1 side ~ 2 side、 1 side ~ shielding room	strike 1.2/50μs 30kV、AC10kV 1min
	2 side ~ shielding room	AC3kV 1min
Voltage ratio	CB、CBS	110V：110V
	CBN	110V、100V：110V、100V
Rate of voltage variation		5% below
Phase number		monophase
Electrostatic shielding		have
VA efficiency		90% above
Types of insulation		B class
Temperature rise limit		55℃ below （Ambient temperature 60℃）
Surge transfer rate		1/1000 below
Insulation resistance	1 side ~ 2 side、 1 side ~ shielding room 2 side ~ shielding room	When DC100V 100MΩ above
