SPD for Japan railways

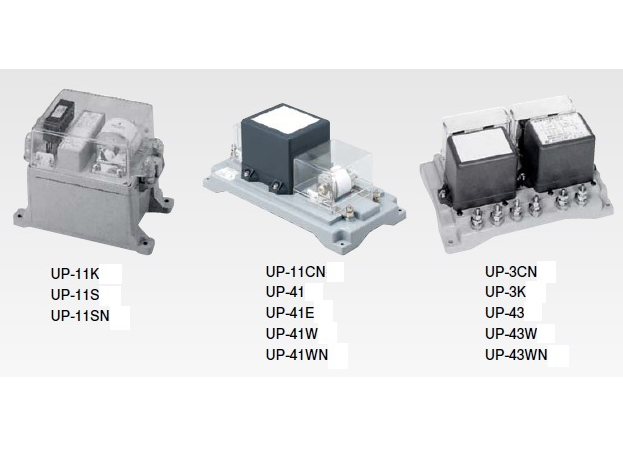

SPD for Shinkansen signal components

UP-[ ]
These SPD can protect Shinkansen ATC track lines from abnormal voltage shocks such as lightning surges.

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

These SPD can protect Shinkansen ATC track lines from abnormal voltage shocks such as lightning surges.

Item	Performance
Item	UP-11CN	UP-11K	UP-11S	UP-11SN	UP-41	UP-41E	UP-41W	UP-41WN
Frequency characteristic	0.5～1.7kHz	0.5～1.0kHz	0.5～1.5kHz	0.5～1.7kHz	0.5～1.5kHz
Use level	40dBm x 2 waves	40dBm x 4 waves	40dBm x 2 waves	40dBm x 2 waves + 46 dBm	40dBm x 4 waves
Impedance ratio	600Ω：270Ω	200Ω：460Ω	600Ω：350Ω	600Ω：270Ω	600Ω：350Ω			600Ω：460Ω
Size（mm）	W350×D170×H150	W190×D120×H180	W190×D120×H160	W190×D120×H180	W350×D170×H140		W350×D170×H150
Mass（kg）	6.5	5.5	4.3	5.5	5.8			6.5

Item		Performance
		UP-3CN	UP-3K	UP-43	UP-43W	UP-43WN
Frequency characteristic		0.5～1.5kHz
Use level	signaling	40dBm x 2 waves		40dBm x 2 waves + 43 dBm	43 dBm	40dBm x 2 waves + 43 dBm
		34 dBm		34dBm x 2 waves + 40 dBm	34 dBm	34dBm x 2 waves + 40 dBm
Impedance ratio	signaling	18Ω：270Ω、28Ω：270Ω、38Ω：270Ω
		100Ω：350Ω
Size（mm）		W250×D170×H120
Mass（kg）		4.6
