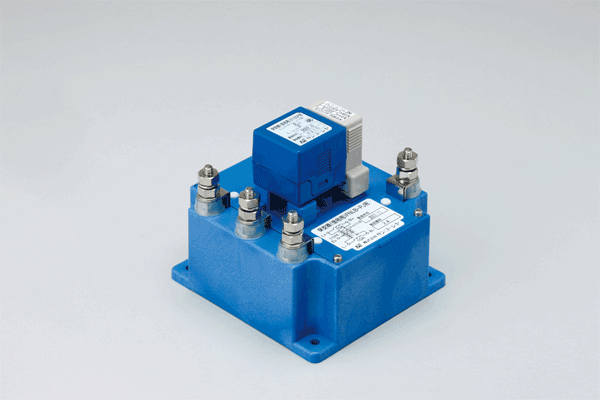

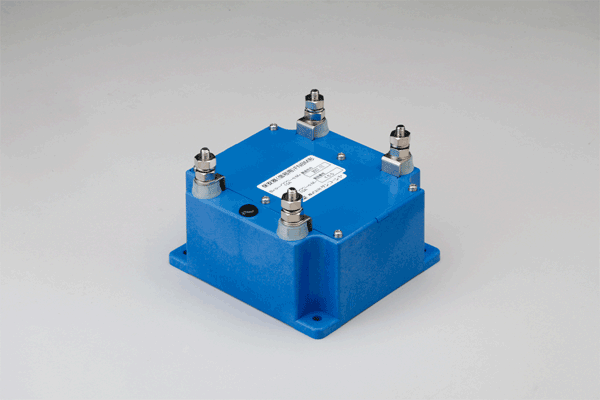

SPD for power supply of railway crossing equipment

FNLB-PJ、FNBM
The power supply protectors for railway crossing equipment include products such as the F type and FN type,They combine an AC power supply and a DC power supply with a security device.

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

The power supply security device for railway crossing equipment includes F type, FN type and other products, which combine AC power supply and DC power supply security device. Ac power supply in recent years The way of protection with lightning-resistant transformers has become mainstream, and the security device for AC power is no longer needed, so the structure is simplified to only the DC power part. And because The DC power supply part is also separated into external and internal lines, the wiring separation operation is more simplified, if you want to increase the internal power capacity of the appliance box, as long as the internal line is added FMBM type security device is available.

Purpose

• External line 10A (FDLB-PJ)

• Internal line 10A (FNBM)

Features

• Design patents: FNRB-PJ, FNBM

Item	Performance
	F	FN
	F	FN
Nominal line voltage	DC24V
Allowable line voltage	DC225V
Dc inductance	1.5mH以上
Rated DC current	10A
Shock protection level	750V or less (10/200, 3kV applied)	—
Impact cycle	10/200μs, 800A Three minute intervals, 300 times	—
Plug/jack	○	—
Size（mm）	W120×D130×H112	W120×D130×H90
