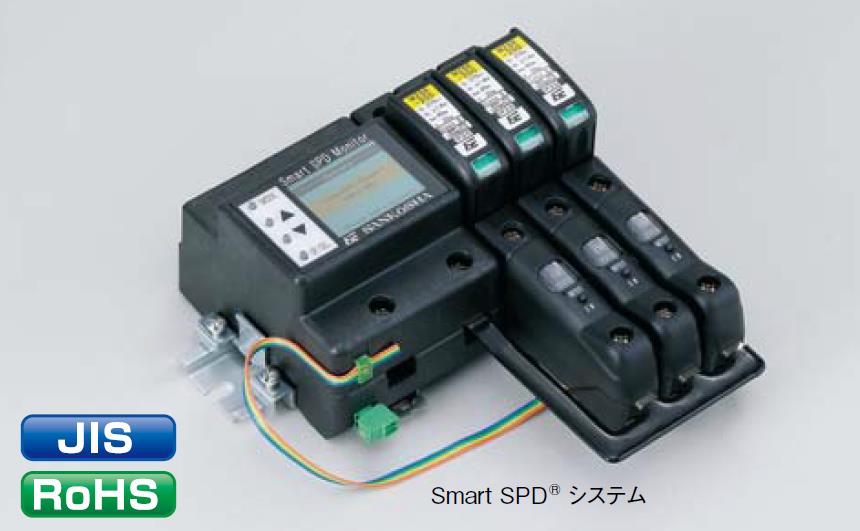

Smart SPD System

IEC ClassⅡ compliant
IEC 61643-11 compliant
RoHS compliant

Inquire Now Online Message

Features

Maximum discharge current 40kA (induction lightning waveform 8/20µs)

Lightning surge current measurement,Replacement recommendation display function

Lightning surge current count display function (3 phase displays, year, month, day, hour, minute, second)

Remote monitoring function for LAN connection (for Windows PC)

Deterioration display function(warning contact output terminal attached)

DIN rail mountable（35mm）

Appearance of patented products

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100V/200V/400V)

Power circuits for various control devices (AC100V/200V/400V)

Installation examples

[78ZF16FA%EC(LOSDM8392F

E`HT[MZ2$_0RZY41F_B53

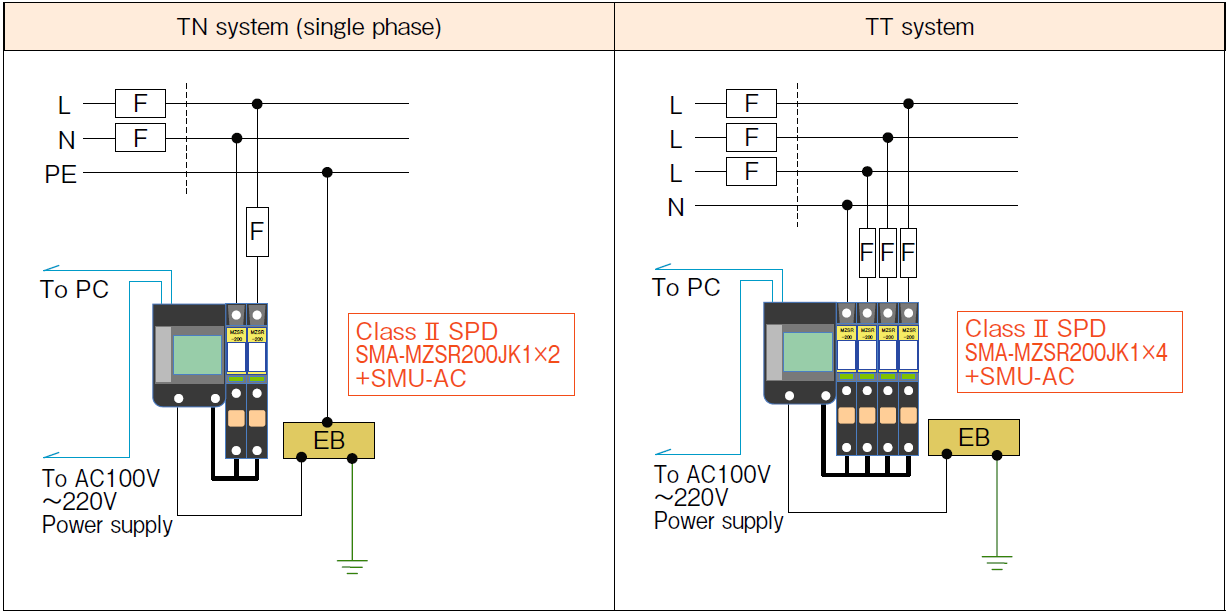

Installation examples (SMA-MZSR200+SMU-AC)

]4)`)Z456KLFS71V05TT18

Smart SPD system

Item	Measurement conditions	Performance
Item	Measurement conditions	SMA-MZSR200JK1	SMA-MZSR400JK1
Maximum continuous operating voltage Uc	─	AC275V	AC500V
Maximum discharge current (lmax)	8/20µs	40kA
Nominal discharge current (ln)	8/20µs	20kA
Voltage protection level (Up)	Based on IEC	1.4 kV or less	2.5 kV or less

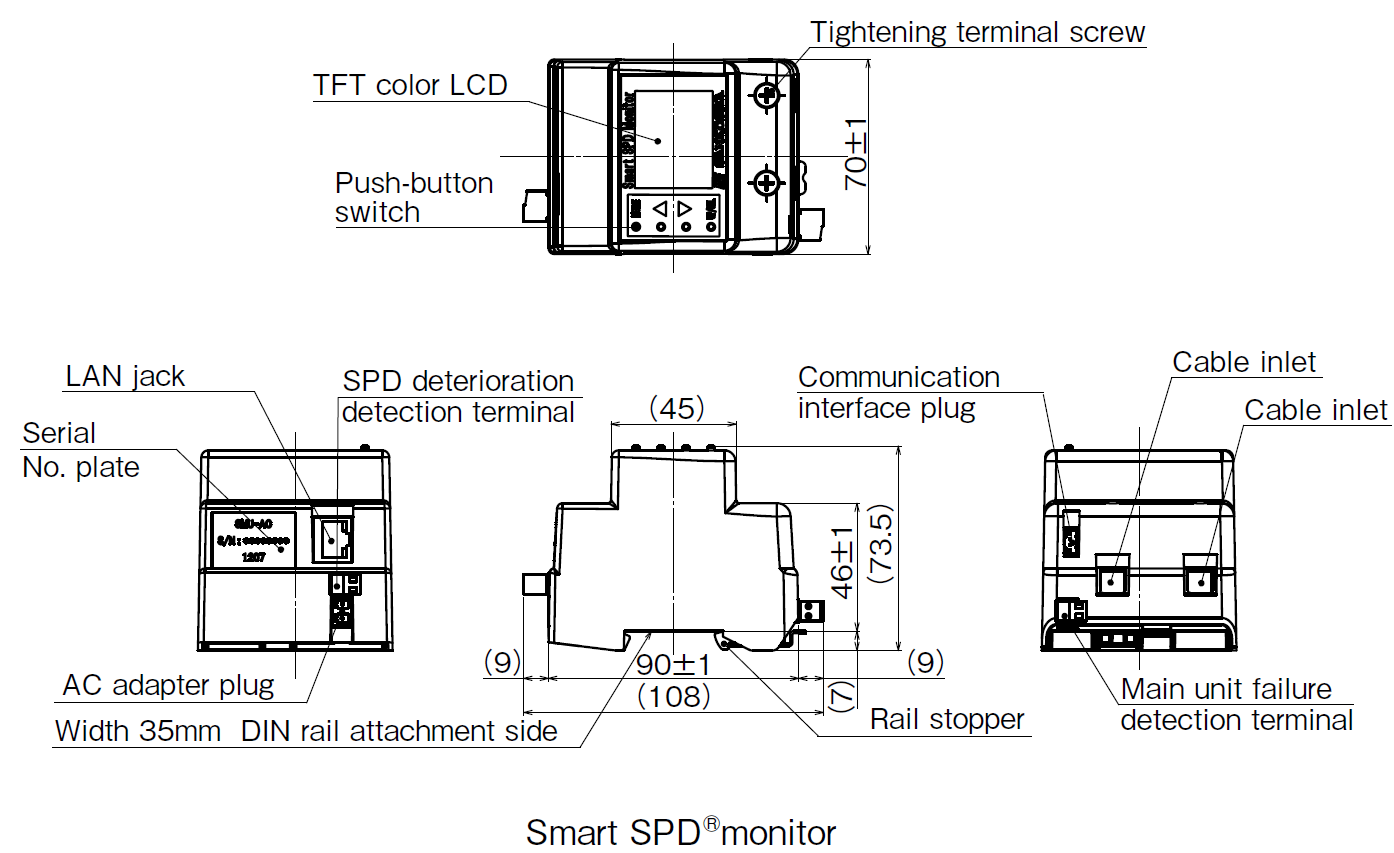

Smart SPD display：SMU-AC

Measurement conditions	Performance
Communication interfaces	LAN:10BASE-T
Smart SPDNumber of connections	Up to 50 units
Power	AC 100V～200V(ACadapter)
