MZSR-200， MZSR-400 ，MZSR-700DC

IEC ClassⅡ compliant
IEC 61643-11 compliant
UL certification（E328370）*MZSR-200JK[ ]
KEMA certification、CE marked *MZSR-200JK[ ] ，MZSR-200JK[ ]ARI
RoHSⅡcompliant

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

Features

Maximum discharge current 40kA (induction lightning waveform 8/20µs)

Plug-in type

Deterioration display function(warning contact output terminal attached)

DIN rail mountable（35mm）

External circuit breakers（MCCB:50AT）≥50AF use

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100V/200V/400V,DC700)

Power circuits for various control devices (AC100V/200V/400V,DC700)

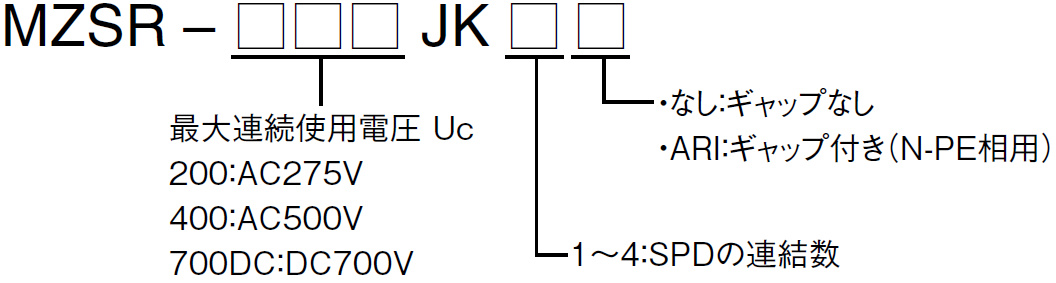

Product model differentiation

ZQP)UKB%Z4)H7G~6PKLSG8

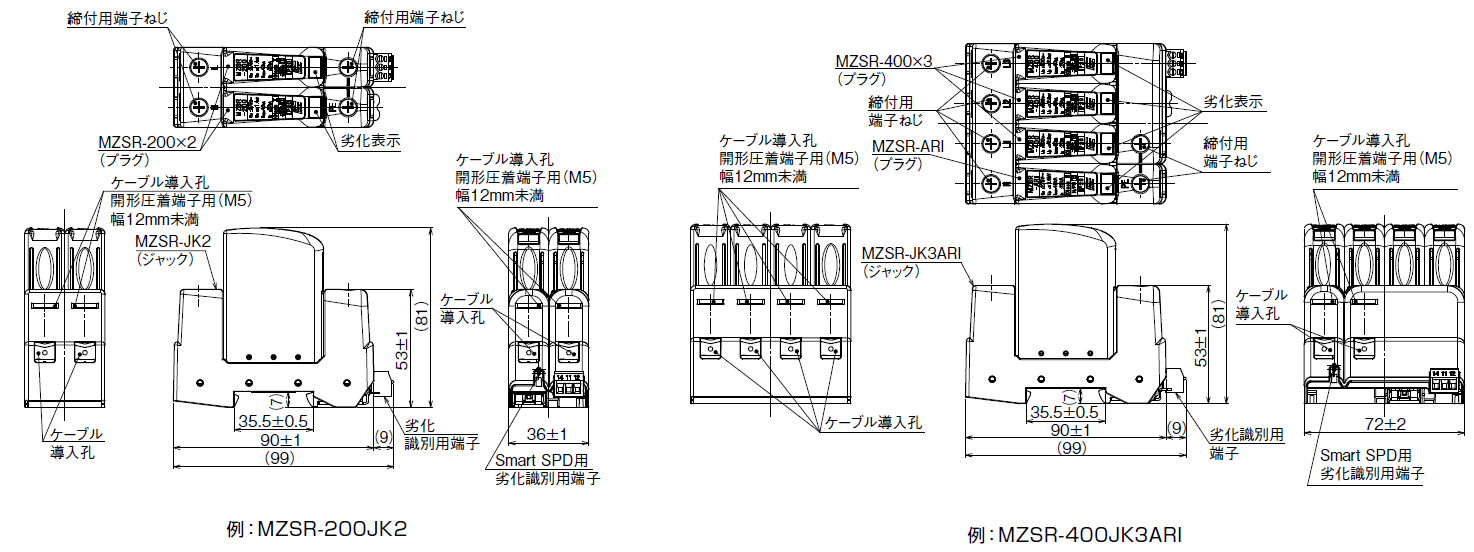

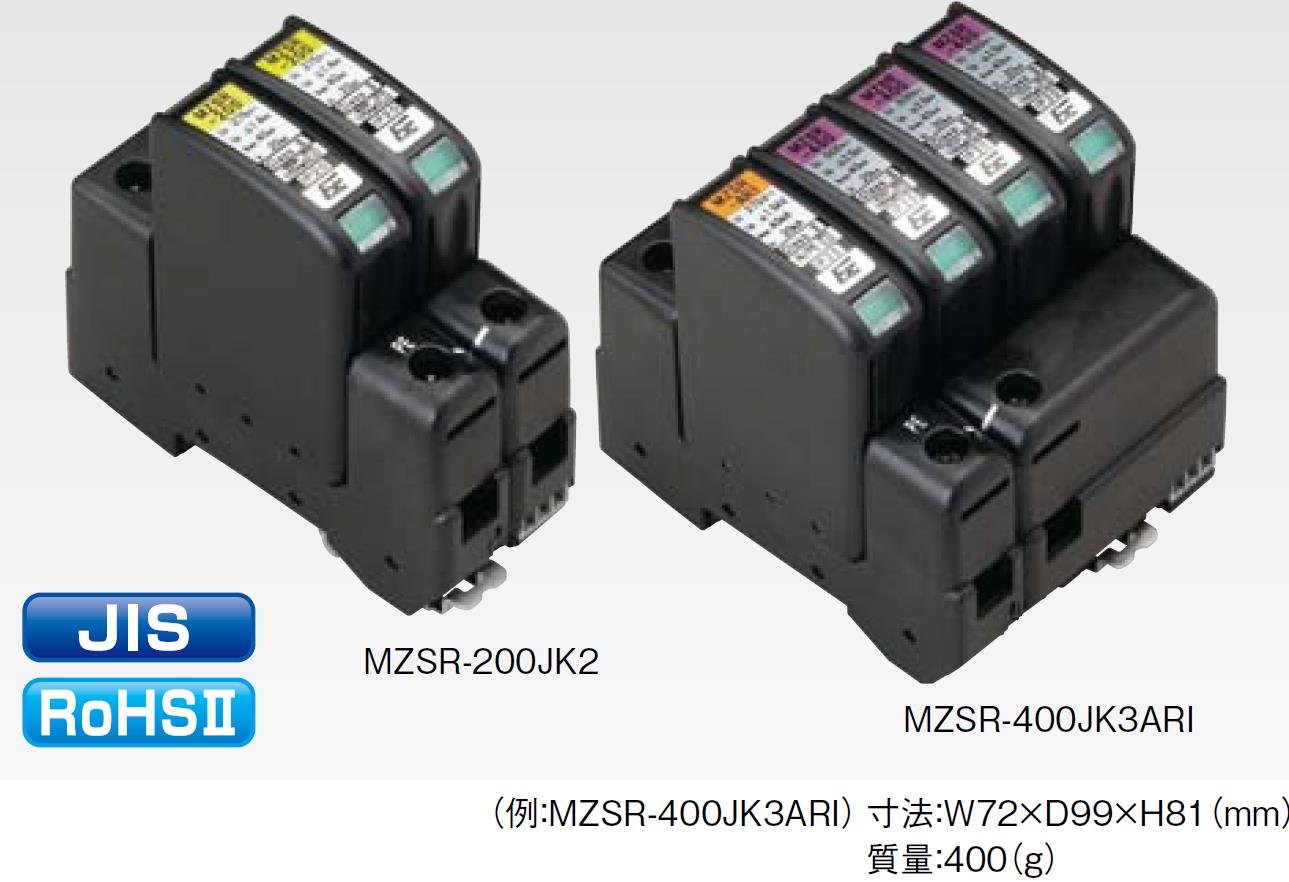

Appearance diagram

2W1J81QJDNWR7LPAMIR$T

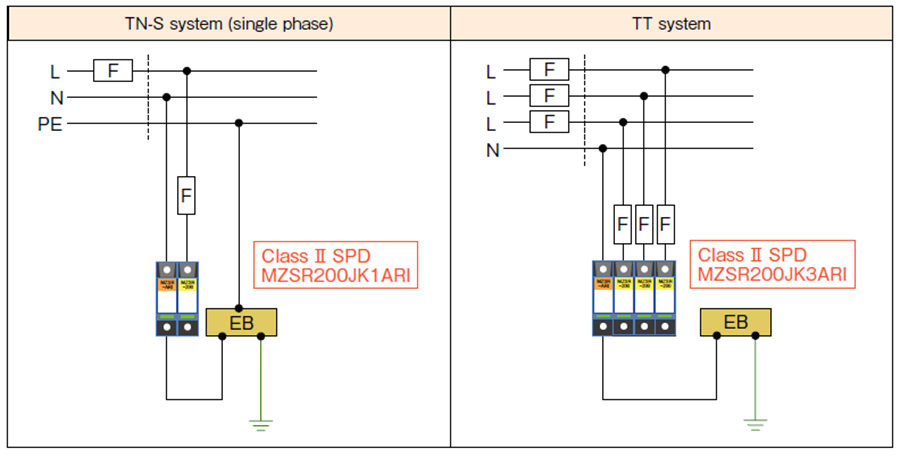

Installation examples (MZSR-200,MZCR-200)

Installation examples (MZSR-400,MZCR-400)

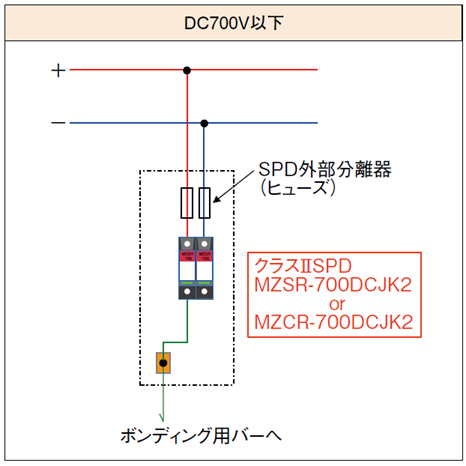

设置事例 (MZSR-700DC,MZCR-700DC)

Item	Measurement conditions	Performance
		MZSR-200JK[ ]		MZSR-200JK[ ]ARI	MZSR-400JK[ ]	MZSR-400JK[ ]ARI	MZSR-700DCJK[ ]
Maximum continuous operating voltage Uc	─	AC275V			AC500V		DC700V
Maximum discharge current (lmax)	8/20µs	40kA
Nominal discharge current (ln)	8/20µs	20 kA
Voltage protection level (Up)	Based on IEC	1.4 kV or less	1.4 kV or less(phases)		2.5kV or less	2.5 kV or less (phases)	2.5 kV or less
		(phases)	1.5 kV or less (N-PE）		(phases)	1.5 kV or less (N-PE）	(phases)
