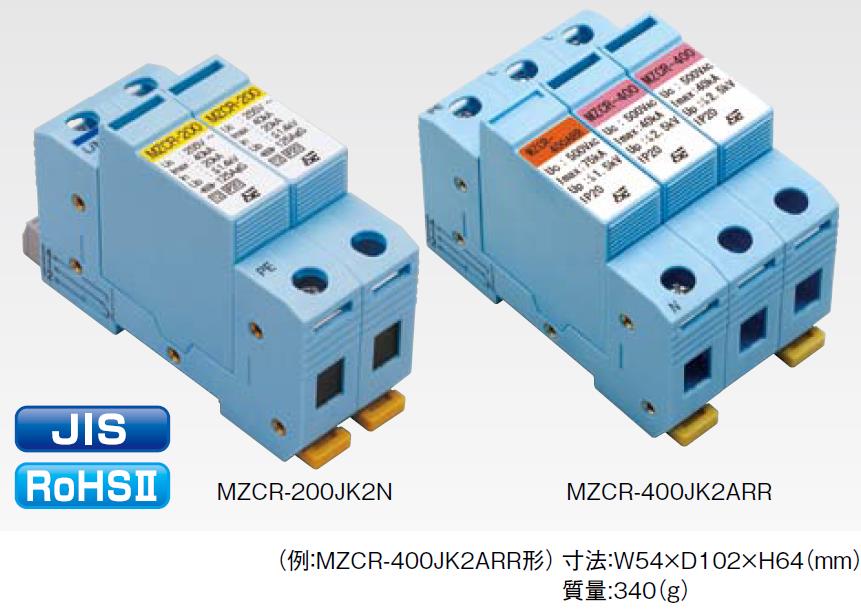

MZCR-100 , MZCR-200, MZCR-400 , MZCR-700

IEC ClassⅡ compliant
IEC 61643-11 compliant
RoHS Ⅱcompliant

Inquire Now Online Message

Features

Maximum discharge current 40kA (induction lightning waveform 8/20µs)

Plug-in type

Deterioration display function(warning contact output terminal attached)

DIN rail mountable（35mm）

Round terminal for M4, width ≤ 12 mm (N shaped)

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100V/200V/400V)

DC Power supply circuits in PV systems (only MZCR-DC700)

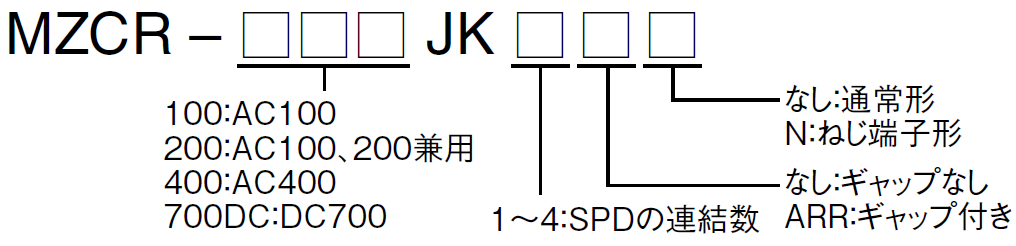

Product model identification

)5%(%[M2WB69K~$BC)FXI

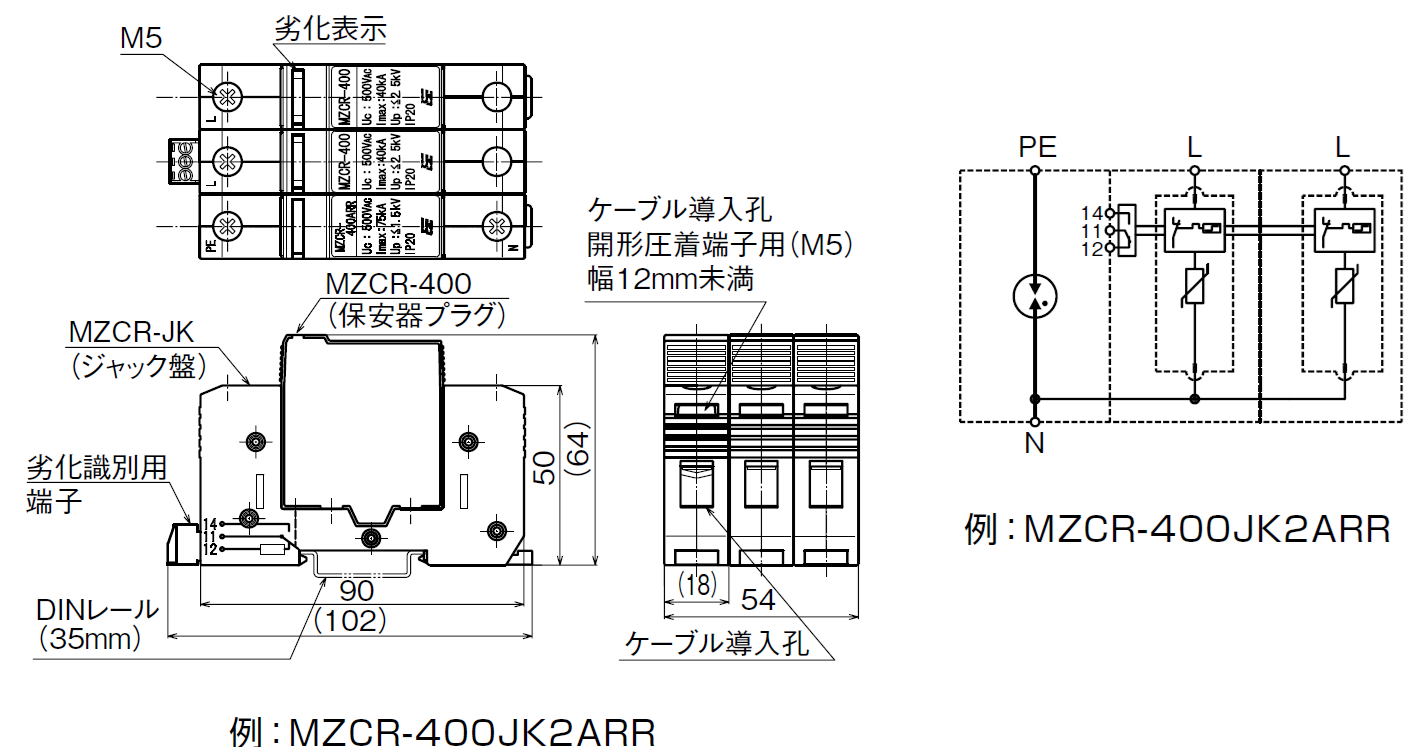

Appearance diagram

HVU~8422)]15CJOIS8H~%3

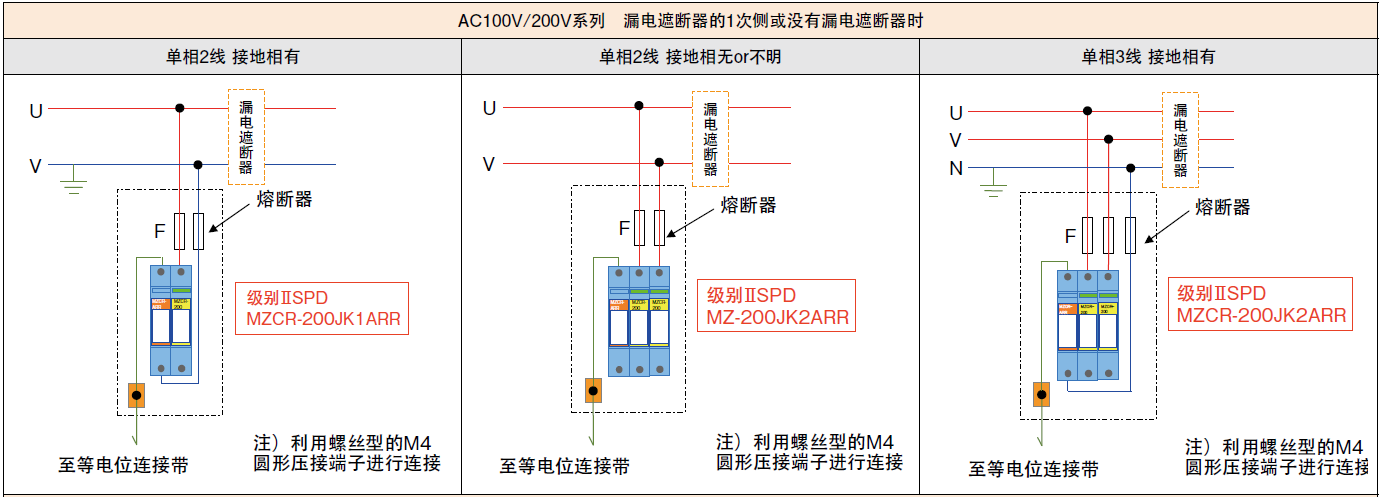

Installation examples (MZCR-200, MZCR-400)

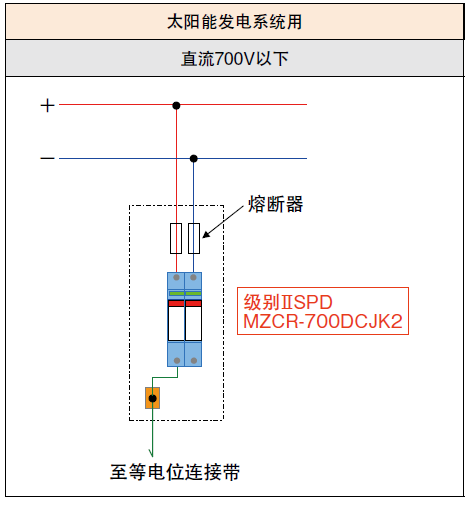

Installation examples (MZCR-700DC)

6D4_(W5FQ47P3G)B$OB]68V

Item	Measurement conditions	Performance
Item	Measurement conditions	MZCR-100JK[ ] MZCR-100JK[ ]N	MZCR-200JK[ ] MZCR-200JK[ ]N		MZCR-200JK[ ]ARR MZCR-200JK[ ]ARRN	MZCR-400JK[ ] MZCR-400JK[ ]N	MZCR-400JK[ ]ARR MZCR-400JK[ ]ARRN	MZCR-700DCJK[ ] MZCR-700DCJK[ ]N
Maximum continuous operating voltage Uc	─	AC150V	AC255V			AC500V		DC700V
Maximum discharge current (lmax)	8/20µs	40kA			40kA (phases) 75kA (N-PE)	40kA(phases)	40kA (phases) 75kA (N-PE)	40kA
Nominal discharge current (ln)	8/20µs	5kA		20 kA	20kA (phases) 60kA (N-PE)	20kA (phases)	20kA (phases) 60kA (N-PE)	20 kA
Voltage protection level (Up)	Based on IEC	700V or less		1.4 kV or less (phases)	1.4 kV or less(phases) 1.5 kV or less (N-PE）	2.5kV or less (phases)	2.5 kV or less (phases) 1.5 kV or less (N-PE）	2.5 kV or less (phases)
