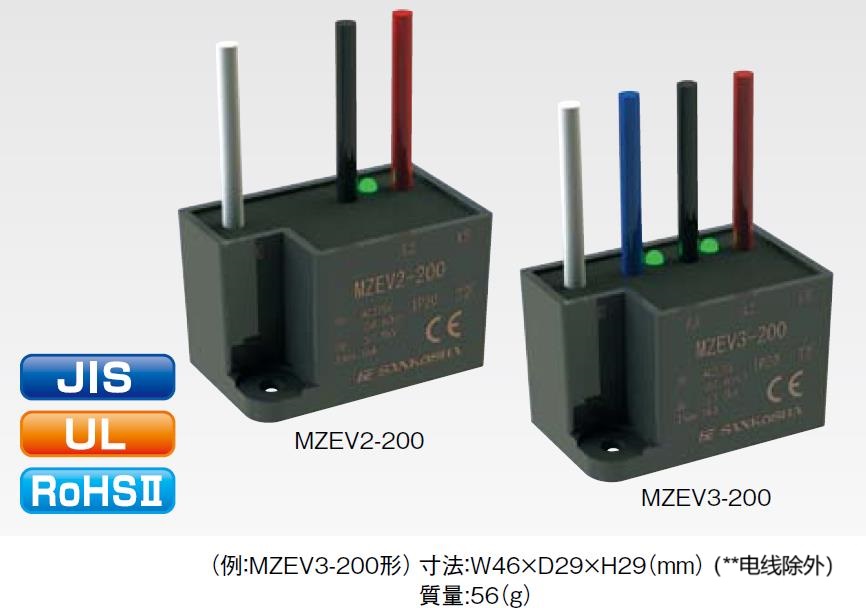

MZEV2-200 ， MZEV3-200

IEC ClassⅡ/Ⅲ compliant
IEC 61643-11 compliant
RoHSⅡcompliant
UL certified
CE marked

Inquire Now Online Message

Features

Small, space-saving installation in the device and screw-in fixing the product

A single product can protect between lines and ground at the same time

Equipped with a high-definition visibility LED deterioration fault display function, equipped with a disconnect function

Applications

Used in electric charging devices, etc., various power protection devices

Embedded in the lighting disc

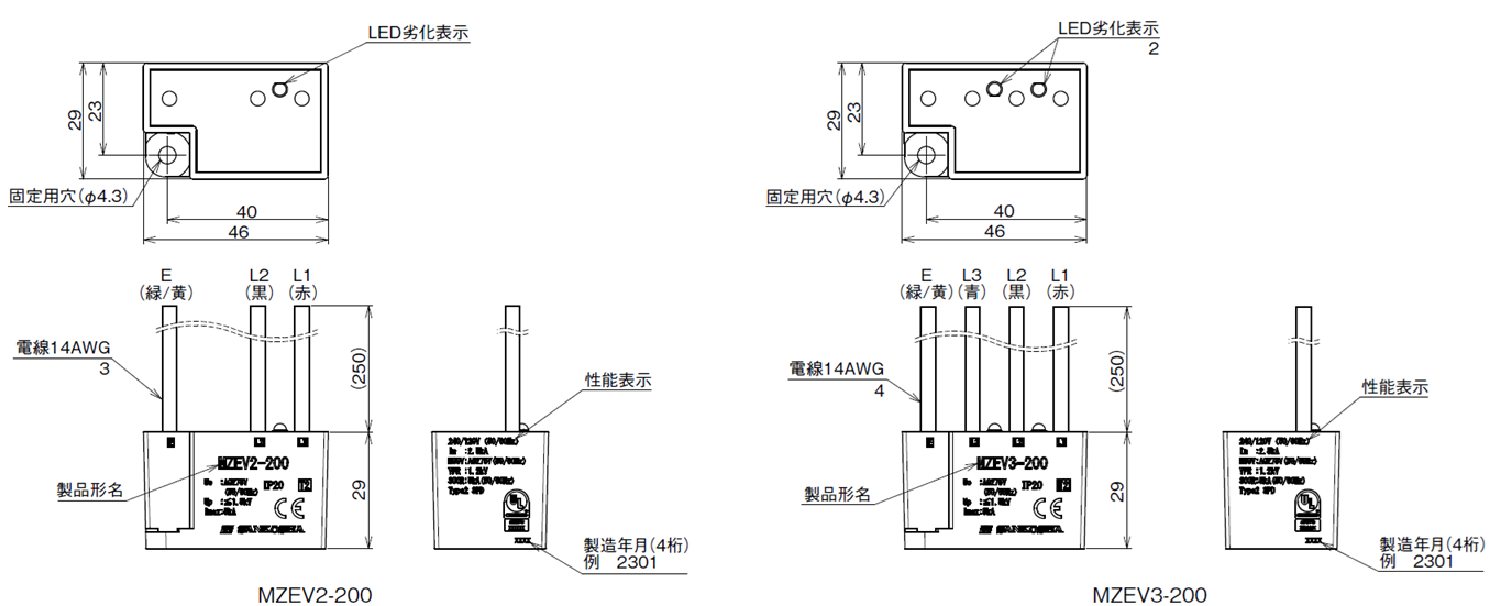

Appearance diagram

@5CWJS85NCKS296W4OW_(PL

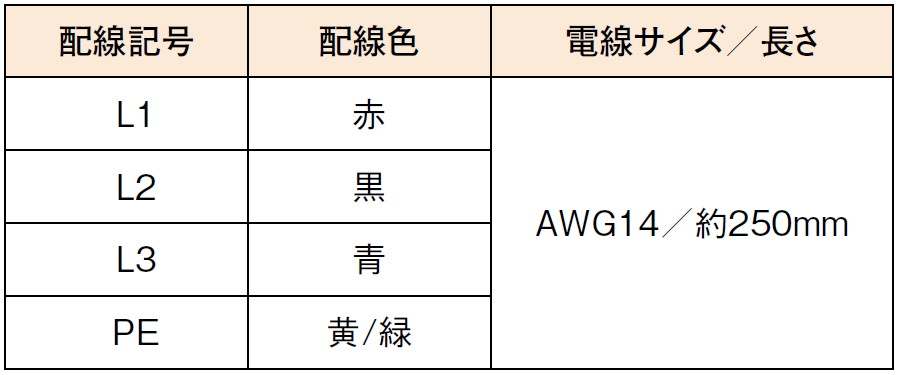

Terminal identification

2DT8%_ARFG]UJR53Y%ZSQC5

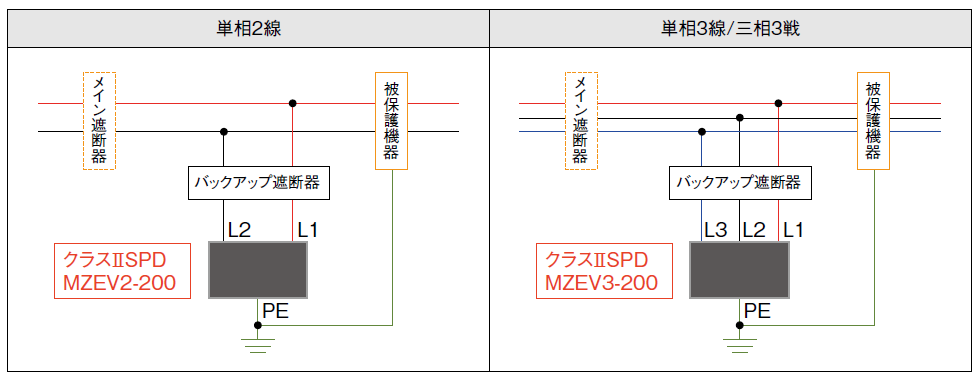

Installation Example (MZEV2-200型, MZEV3-200型)

66G5OQ%EUJXV$OK@90M5H

Item	Measurement conditions	Performance
		MZEV2-200	MZEV3-200
wiring	―	Single phase 2wire	Single phase 3wire Three phase 3wire
Nominal voltage	―	240/120V
Maximum continuous operating voltage(Uc)	L-L、L-PE	AC275V
Maximum discharge current (lmax)	8/20μs	5kA（Single phase）
Nominal discharge current (ln)	8/20μs	2.5kA（Single phase）
Voltage protection level (Up)	L-L､L-PE	1.5kVor less
Deterioration indication	―	Normal: Light on Fault: Lights off
