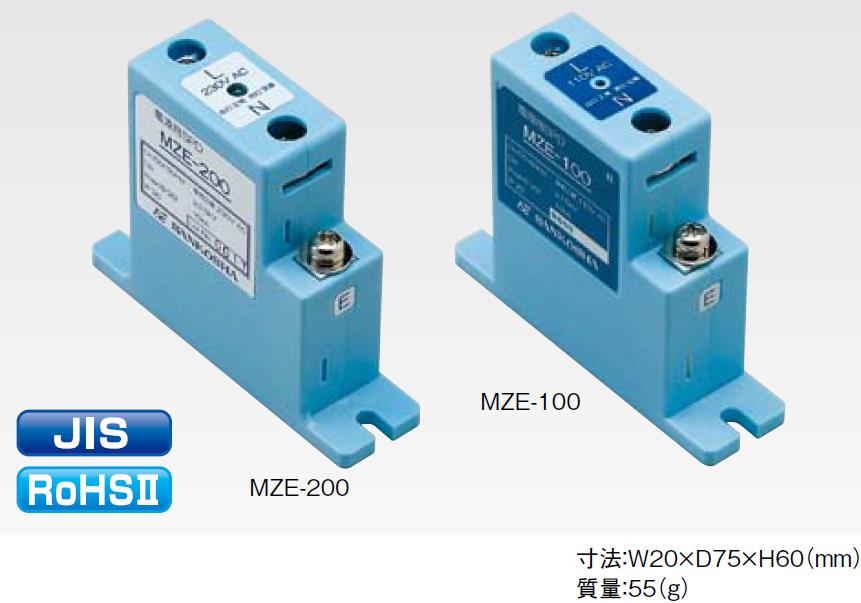

MZE-100 , MZE-200

IEC 61643-11 compliant
RoHSⅡcompliant

Inquire Now Online Message

Features

Maximum discharge current 10kA (induction lightning waveform 8/20µs)

1 unit with 2-phase line, Between the lines and to ground protection

Equipped with a deterioration indication LED visualization function

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100V/200V)

Power circuits for various control devices(AC100V/200V)

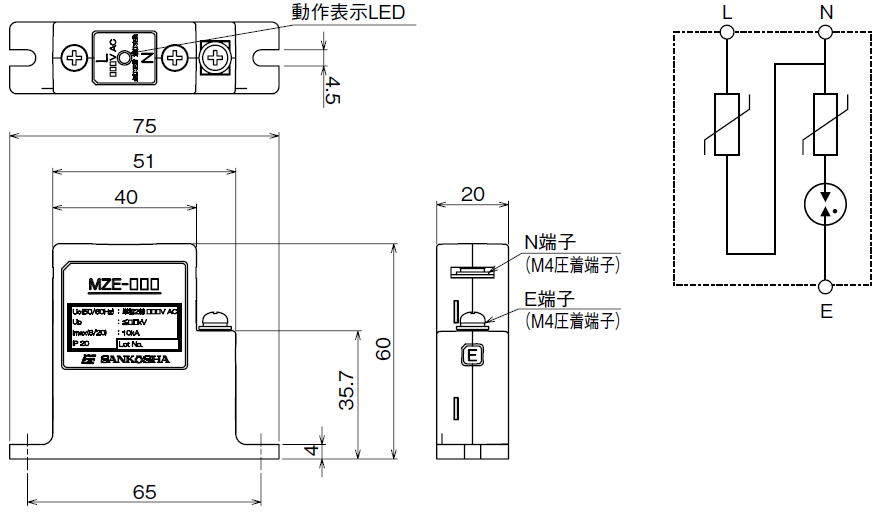

Appearance diagram, Circuit diagram

_O@BI]J6TJZM_5%$LYVCZT1

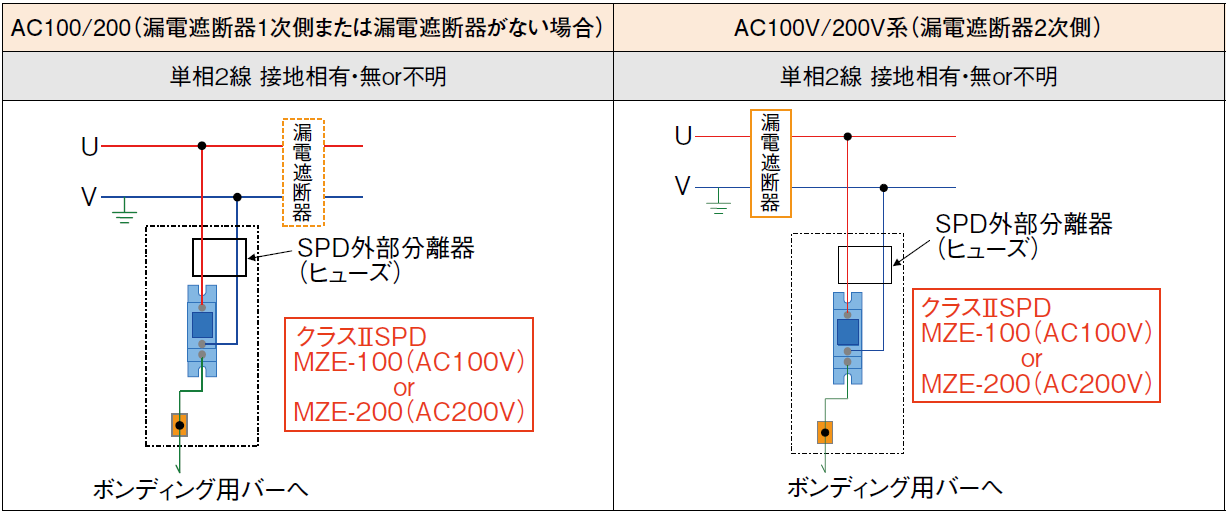

Installation examples (MZE-100, MZE-200)

TJ@KNK$0(ZTXPD5)~XKSLW

Item	Measurement conditions	Performance
Item	Measurement conditions	MZE-100	MZE-200
Maximum continuous operating voltage (50/60Hz)(Uc)	―	Single phase 2wire AC100V	Single phase 2wire AC230V
Maximum inrush current(lmax)	8/20μs	10kA(3times）
Nominal discharge current (ln)	8/20μs	5kA
Voltage protection level (Up)	Based on IEC	0.8kV or less (Between the lines) 1.5kV or less (to ground)	1.5kV or less (Between the lines) 2.5kV or less (to ground)
