PMZ2 , PMZ3

IEC ClassⅡ compliant
IEC 61643-11 compliant
RoHSⅡcompliant

Inquire Now Online Message

Features

Space-saving design for embedded devices

A single product can protect between lines and ground at the same time

Built-in isolation prevents abnormal heating in the event of aging failure

Deteriorate fault display with high-definition visibility LED

Applications

PCS (Power Conditioner) used in solar power generation and other equipment

Embedded in the lighting disc

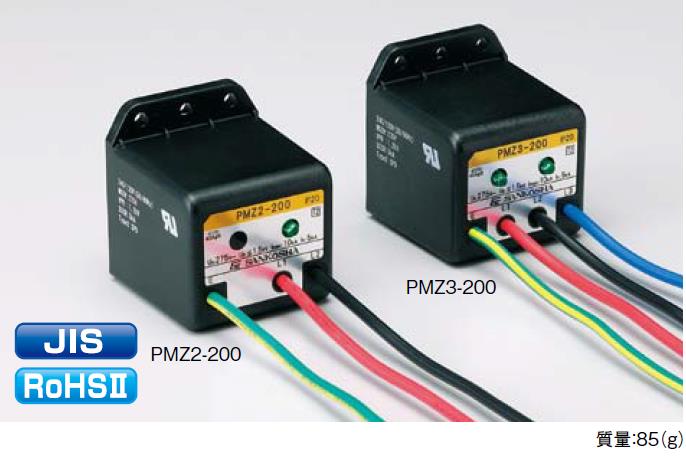

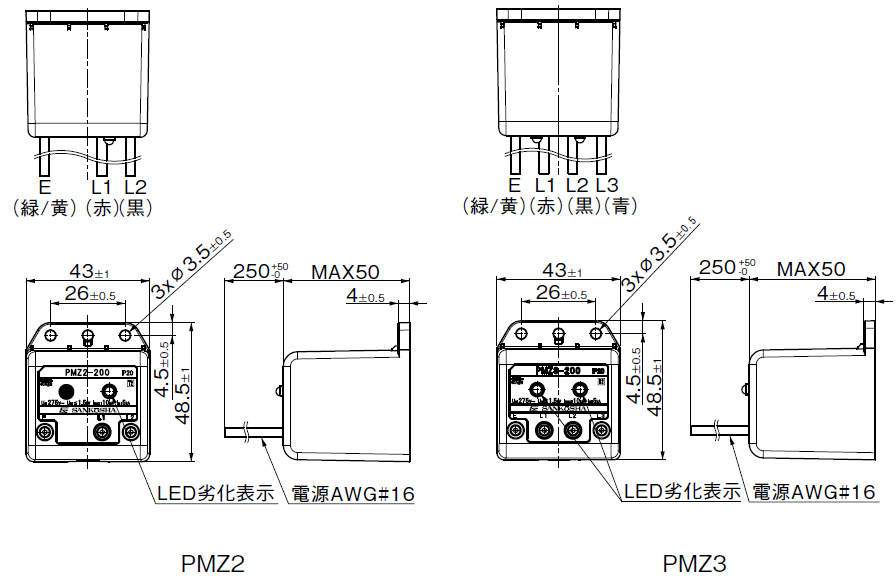

Appearance diagram

3$6K`QZT9FXV4[QQL]H[HD

Installation Example (PMZ2型, PMZ3型)

CAK)Y6PH`$0QXGU~9PF0C

Item	Measurement conditions	Performance
		PMZ2-200	PMZ3-200	PMZ2-400	PMZ3-400	PMZ2-500	PMZ3-500
wiring	─	2line class(Single phase 2wire)	3line class(Single phase 3wire，Three phase 3wire)	2line class(Single phase 2wire)	3line class(Three phase 3wire)	2line class(Single phase 2wire)	3line class(Three phase 3wire)
Nominal voltage		AC250V		AC430V		AC500V
Maximum continuous operating voltage(Uc)	L-L,L-E	AC275V		AC480V		AC550V
Maximum discharge current (lmax)	8/20µs	10kA（Single phase）
Nominal discharge current (ln)	8/20µs	5 kA（Single phase）
Voltage protection level (Up)	8/20µs 5kA（L-L,L-E）	1.5 kVor less		2.5 kVor less
Deterioration indication	8/20µs 1000A	500 times
