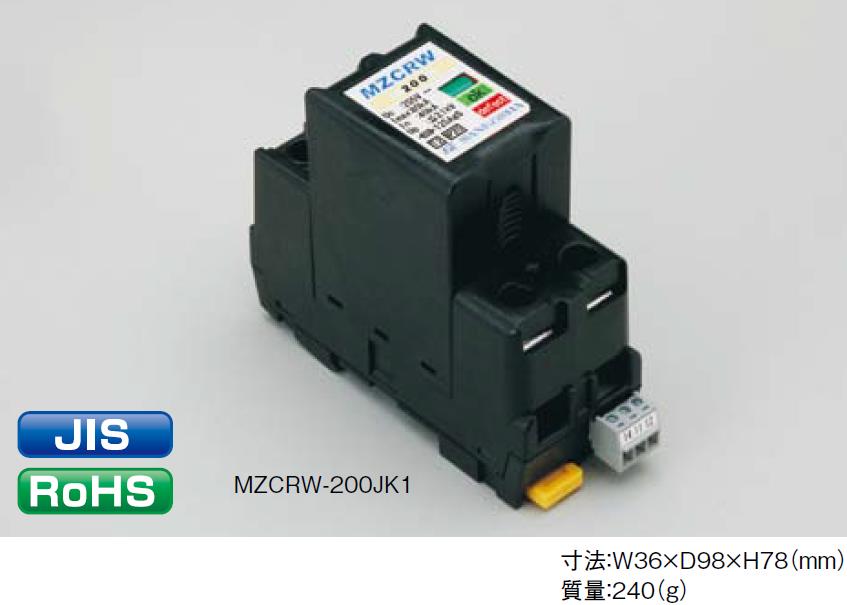

MZCRW-200

IEC ClassⅡ compliant
IEC 61643-11 compliant
RoHS compliant

Inquire Now Online Message

Features

Maximum discharge current 80kA (induction lightning waveform 8/20µs)

Plug-in type

Deterioration display function(warning contact output terminal attached)

DIN rail mountable（35mm）

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100V/200V)

Power circuits for various control devices(AC100V/200V)

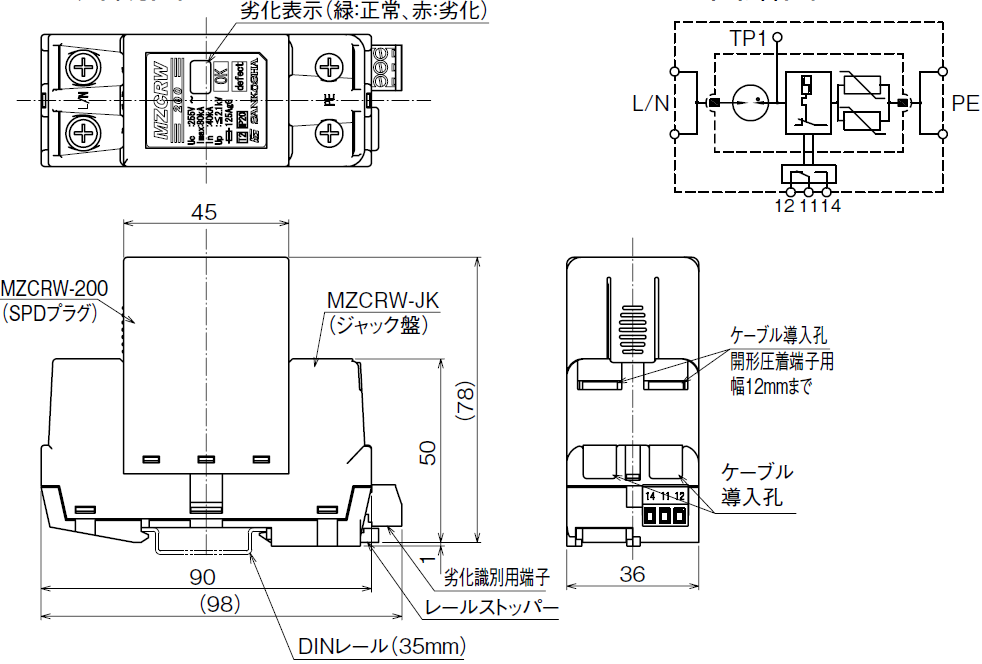

Appearance diagram, Circuit diagram

OUR~T$S2[7LD%648)XUU%@D

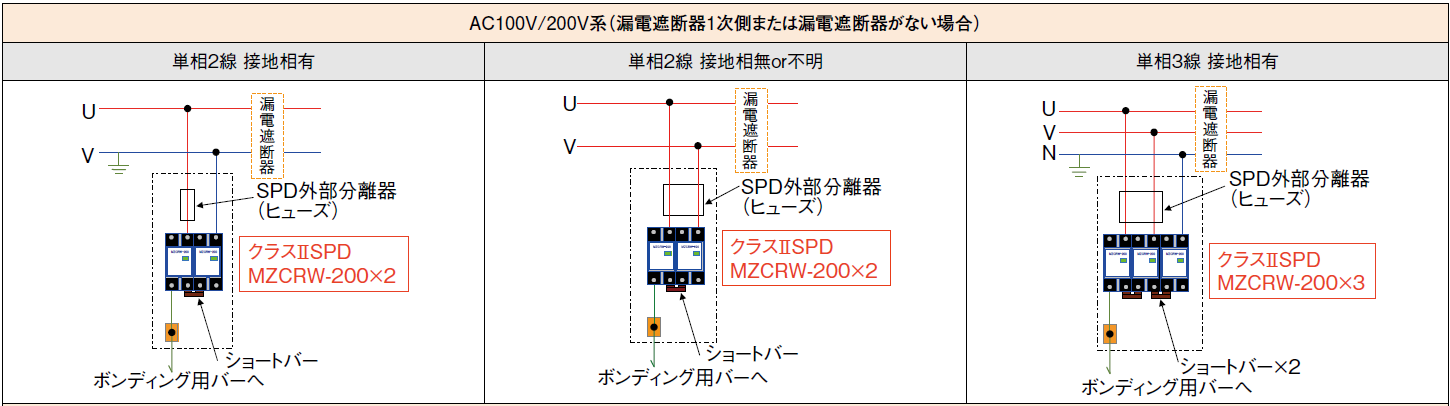

Installation examples

SB_EMT6KGVO12I04C)7KGOY

Item	Measurement conditions	Performance
Maximum continuous operating voltage (50/60Hz)(Uc)	─	AC255V
Maximum inrush current(lmax)	8/20µs	80kA
Nominal discharge current (ln)	8/20µs	40kA
Voltage protection level (Up)	Based on IEC	2.1 kV or less

● MZCRW-200 仕样书（下载资料）Down
