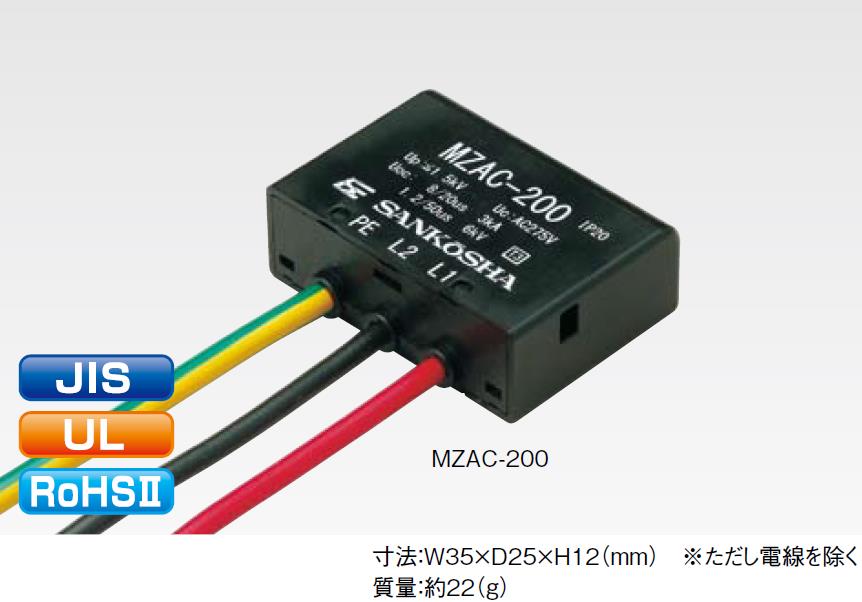

MZAC-200

IEC ClassⅢ compliant
IEC 61643-11 compliant
RoHSⅢcompliant
UL certified (E328370)
CE marked

Inquire Now Online Message

Features

Space-saving design

Trip-level structural function

Deterioration of display functions

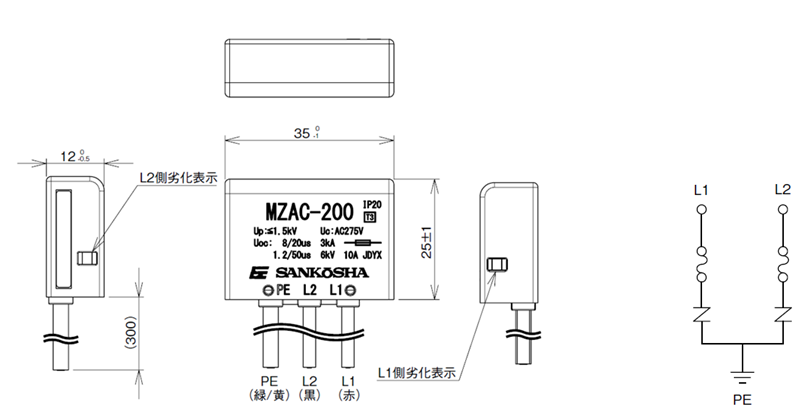

Appearance diagram, Circuit diagram

XX[QI$3_)[Q77~)S3D_AND

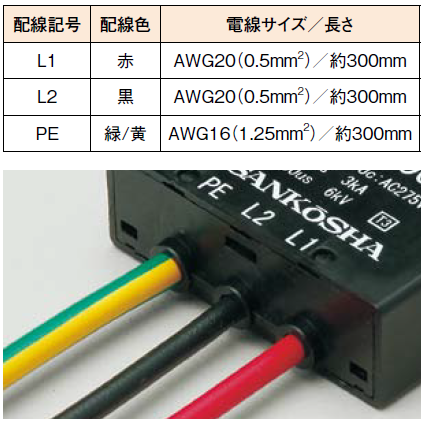

Terminal identification

CL~RK`XZK6NATCXTWW_R~QD

Trip structure ● deterioration display

• When the lightning protection element deteriorates, it has a trip function, so it can be used with peace of mind

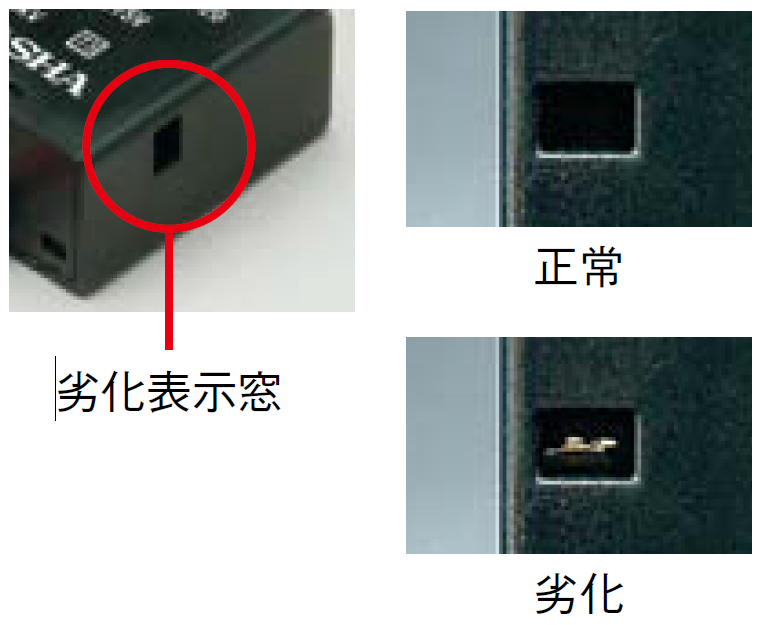

• When tripping, the deterioration indication window on the side will pop up, so please replace it

Q8)W0E]R]KD)YWPF24O670

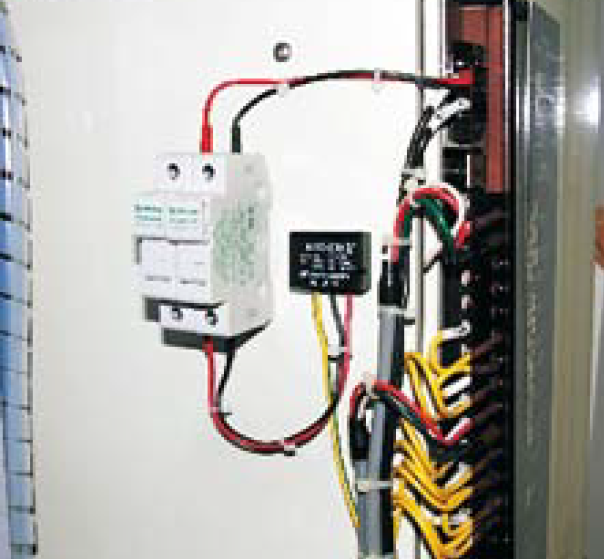

Installation Example(Space Saving)

• The product size is small and does not take up space. The wire can be lengthened according to the wiring environment

6J`TXHOUORXW2%B7O2W]02A

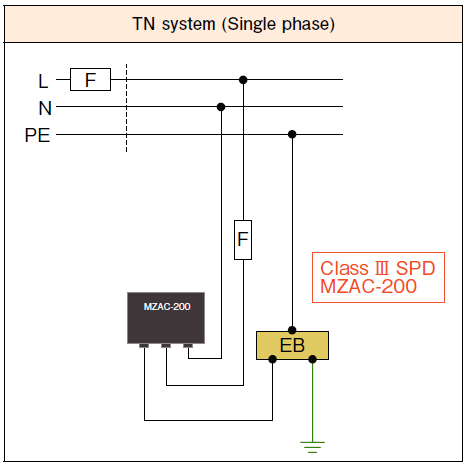

Installation Example (MZAC-200)

~61P36)IBDWGYICMCZ22)QS

Item		Performance
Nominal voltage UN		Single phase 2wire 200V
Maximum continuous operating voltage(Uc)		AC275V（50/60Hz）
Open loop voltage Uoc	1.2/50㎲	6kV
Voltage protection level (Up)	L1－L2	1.5kVor less
Voltage protection level (Up)	L1/L2－PE	1.5kVor less
Rated short-circuit current ISCCR	L1/L2－PE	70A（50/60Hz）
Temporary overvoltage characteristics UT	L1/L2－PE	335V 5s（50/60Hz）
Leakage current IPE	AC255V（L1/L2－PE）	1mAor less
Nominal discharge current (ln)		3kA
Test grade		classⅢ
Number of ports		1 ports
Installation Category		Interior of the indoor chassis
Degree of protection		IP20
Deterioration display		Normal: No display Fault: Silver
