SPD for Japan railways

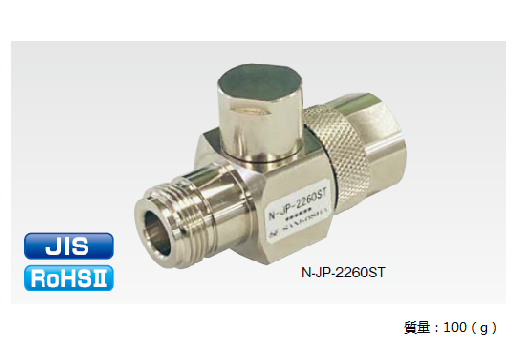

N-JP-2260ST type

JIS C 5381-21 （IEC61643-21）compliant
RoHS II compliant

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

Conforming standards：

JIS C 5381-21 （IEC61643-21）compliant

RoHS II compliant

Features：

λ/4 Short column

Support high frequencies up to 6GHz

High lightning protection performance

No grounding wiring required

Applications：

The fifth generation mobile communication system "5G"

Local 5G （Sub6 frequency band）

wireless communication equipment

ETC2.0

ITS（Advanced road traffic system）

Wireless LAN 2.4GHz band, 5GHz band

J0IJ4)N18W26NCO1PPLKG8

Item		Performance
Connector type		N type（P-J）
Frequency bandwidth		2.2GHz～6.0GHz（No DC Reset）
V.S.W.R		1.35 or less
Insertion loss		0.2dB or less
Impedance		50Ω
Permissible power		maximum100W
Voltage protection level	1.2/50μs、10kV	20V or less
	10/200μs、10kV	20V or less
Impulse durability	CategoryC2（8/20μs）	30kA（10 times）
	CategoryD1（10/350μs）	2.5kA（2 times）

● N-JP-2260ST 仕样书（下载资料）Down
