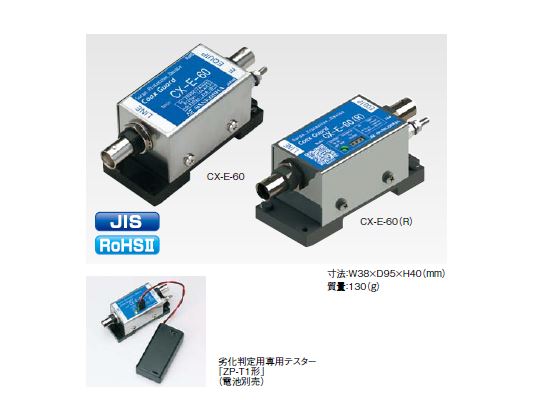

CX-E-60R type

JIS Category C2/D1 compliant

Inquire Now Online Message

Conforming standards：

JISC5381-21（IEC61643-21） compliant

In line with the Ministry of Land, Infrastructure and Transport and Tourism(Japan) public building engineering standard specification

RoHSⅡ compliant

Features：

Optimazed design for coxial LAN converter

Equipped with deterioration display function (CX-E-60 (R) ※ Special tester required)

PoE power supply function to cameras etc enabled

Low insertion loss less than 1.0dB in DC to 50MHz

Insulation type BNC conncetor

Applications：

Coxial LAN converters

Monitoring cameras (power source superimposed)

Data transmission devices

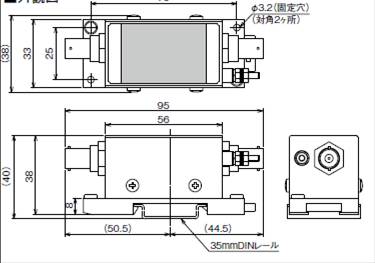

QQ图片20250509182439

Item		Performance
		CX-E-60	CX-E-60（R）
Connector type		BNC type（J-J）
Frequency bandwidth		DC～50MHz
Insertion loss		1.0dB or less
Maximum continuous operating voltage		DC70V
Impedance		50Ω/75Ω
Rate current		1A
Voltage protection level	1.2/50μs、10kV	250V以下（between conductors） 500V以下（to ground）
Impulse durability	cagegoryC2（8/20μs）	10ｋA（10times）
	cagegoryD1（10/350μs）	2ｋA（2times）
DC resistance		1Ω±20％
