SPD for Japan railways

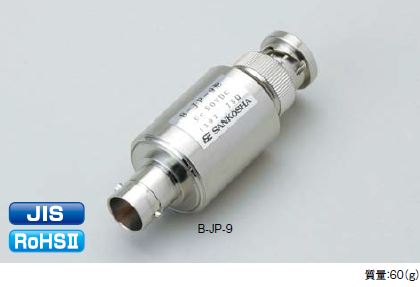

B-JP-9 type

JIS Category C2/D1 compliant
EX-SDI standard compliant

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

Conforming standards：

JIS C5381-21（IEC61643-21） compliant

In line with the construction equipment design standards of the Ministry of Land, Infrastructure and Transport

In line with the Ministry of Land, Infrastructure and Transport and Tourism(Japan) public building works standard specification

RoHSⅡ compliant

Applications：

HD-SDI devices（monitoring cameras、broadcasting facilities etc）

O@@Z[QZ_`W1~_RIQIJ4)KA6

Item		Performan
connector type		BNC type（P-J）
Frequency bandwidth		DC～3GHz
V.S.W.R		1.5 or less
Insertion loss		0.5dB or less
Impedance		75Ω
Permissible power		10W
Voltage protection level		700V or less
DC sparkover voltage		DC120V or more
Impulse durability	cagegoryC2（8/20μs）	5kA（10times）
	cagegoryD1（10/350μs）	2.5kA（2times）

● B-JP-9 仕样书（下载资料）Down
