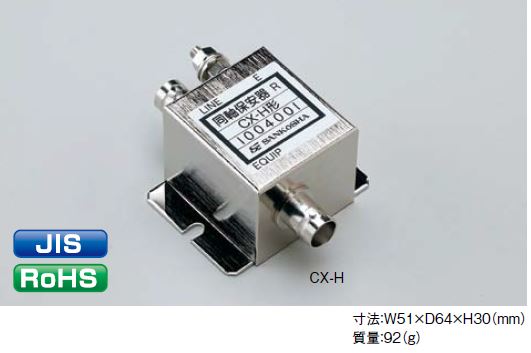

CX-H type

JIS Category C2/D1 compliant

Inquire Now Online Message

Conforming standards：

JIS C5381-21 (IEC61643-21)compliant

In line with the construction equipment design standards of the Ministry of Land, Infrastructure and Transport

In line with the Ministry of Land, Infrastructure and Transport and Tourism(Japan) public building works standard specification

RoHS compliant

Applications：

monitoring cameras

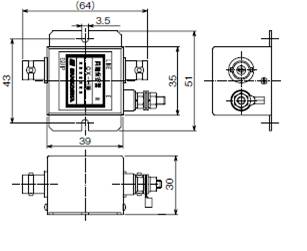

QQ图片20250509182059

Item		Performance
Item		Performance
Connector type		BNC type（J-J）
Frequency bandwidth		DC～10MHz
Insertion loss		0.5dB or less
Impedance		75Ω
Voltage protection level	1.2/50μs、10kV	110V or less（between conductors） 1kV or less（to ground）
Impulse durability	cagegoryC2（8/20μs）	5kA（10times）
Impulse durability	cagegoryD1（10/350μs）	2.5KA（2times）
