Conforming standards：
JIS C 5381-21(IEC61643-21) compliant( Only available for GPSP1)
RoHSⅡ compliant
Features：

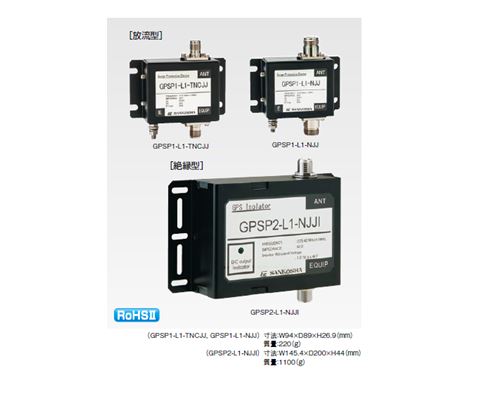

The lineup of insulated type and discharge type
Support providing DC to the antenna
Low-loss GPS L1 band
LOSS: Below 1.0dB, VSWR: Below 1.3
[Discharge type]
The voltage protection level is below 10V
Connector shapes can be selected from type TNC and Type N
[insulated type]
Equipped with DC output indicator, visual confirmation of operation status
Applications:
GPS antenna port
Item | Performance | |||

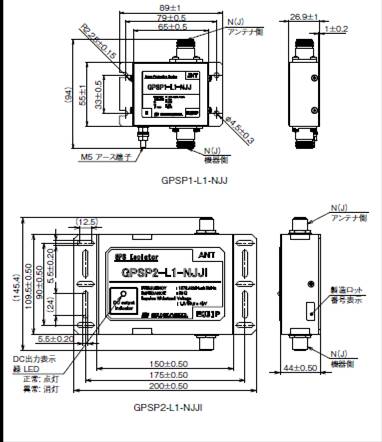

GPSP1-L1-TNCJJ type | GPSP1-L1-NJJ type (JIS) | GPSP2-L1-NJJI type | ||
Protection type | Discharge type | Insulated type | ||
Connector form | TNC type（J-J） | N type（J-J） | ||
Frequency bandwidth | 1575.42MHz ± 5MHz | |||
V.S.W.R | 1.3 or less | |||
Insertion loss | 1.0dB or less | 0.3dB or less | ||
Impedance | 50Ω | |||
Permissible power | 10W | |||
Voltage protection level | 10V or less | |||
Impulse durability | CategoryC2（8/20μs） | 2kA（10times） | — | |
Impulse withstand voltage | 1.2/50μs | 4kV or more | ||
