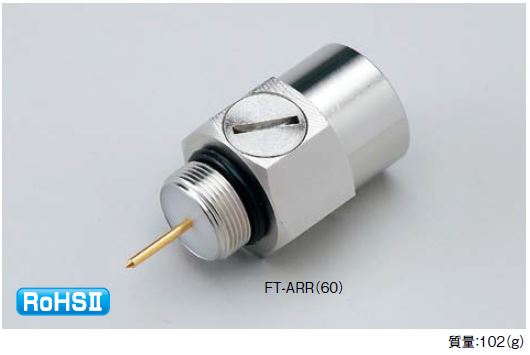

    FT-ARR(60) type

    RoHSⅡ compliant
    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

    Conforming standards：

    RoHSⅡ compliant


    Applications：

    For CATV amps


    09V6P$M2N8HT]X~QKX175D

    Item

    Performance

    Connector type

    FT type

    Frequency bandwidth

    DC～1GHz

    V.S.W.R

    1.2 or less

    Insertion loss

    0.2dB or less

    Impedance

    75Ω

    Permissible power

    10W

    Voltage protection   level

    10/200μs、5kV

    1.2kV or less

    DC sparkover voltage

    DC180V or more

    Impulse discharge current

    8/20㎲

    10kA（1time）


    ●  FT-ARR(60) 仕样书（下载资料）Down
