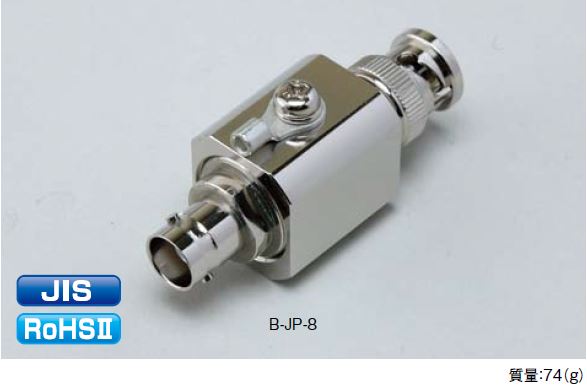

    B-JP-8 type

    JIS Category C2/D1 compliant
    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

    Conforming standards：

    JIS C5381-21（IEC61643-21） compliant

    RoHSⅡ compliant


    Applications：

    Monitoring cameras


    LY`(CN]W19W2]ADHQ@33I%Y


    Item

    Performance

    Connector type

    BNC type（P-J）

    Frequency bandwidth

    DC～400MHz

    V.S.W.R

    1.2 or less

    Insertion loss

    0.2dB or less

    impedance

    75Ω

    Permissible power

    50W

    Voltage protection level

    1.5kV or less

    DC sparkover voltage

    DC180V or more

    Impulse durability

    CagegoryC2（8/20μs）

    20KA（10times）

    CagegoryD1（10/350μs）

    2.5KA（2times）


    ●  B-JP-8 仕样书（下载资料）Down
