SPD for Japan railways

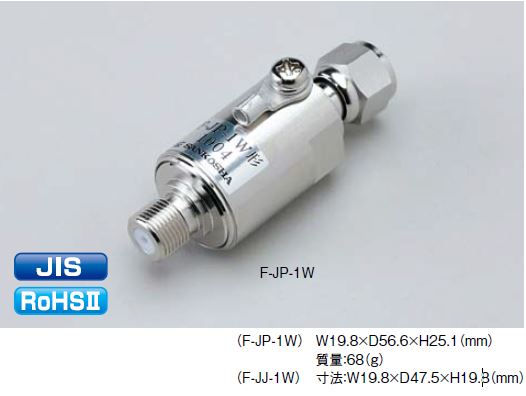

F-JP-1W、F-JJ-1W type

JIS Category C2/D1 compliant

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

Conforming standards：

JIS C5381-21（IEC61643-21） compliant

In line with the construction equipment design standards of the Ministry of Land, Infrastructure and Transport and Tourism(Japan)

In line with the Ministry of Land, Infrastructure and Transport and Tourism(Japan) public building works standard specification

RoHSⅡ compliant

Applications：

4K、8K、CS、TVtuners

$XG5NCFTE(@U[NO$O@@7A

Item		Performance
		F-JP-1W	F-JJ-1W
Connector type		F type（P-J）	F type（J-J）
Frequency bandwidth		DC～3.3GHz
V.S.W.R		1.5 or less
Insertion loss		0.5dB or less
Impedance		75Ω
Permissible power		50W
Voltage protection level		800V or less
DC sparkover voltage		DC200V or more
Impulse durability	cagegoryC2 （8/20μs）	2kA（10times）
	cagegoryD1 （10/350μs）	1kA（2times）

● F-JJ-1W形仕样书（下载资料）Down
● F-JP-1W 仕样书（下载资料）Down
