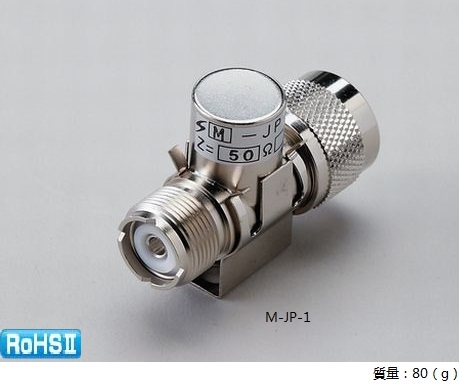

    M-JP-1 type

    RoHSⅡ compliant

    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

    Conforming standards：

    RoHSⅡ compliant


    Applications：

    Wireless communication

    Measuring instruments


    ``TH@72%YA9XPKI`)]2K9D



    Item

    Performance

    M-JP-1（50Ω）

    M-JP-1（75Ω）

    Connector type

    M type（P-J）

    Frequency bandwidth

    DC～400MHz

    DC～30MHz

    V.S.W.R

    1.1 or less

    Insertion loss

    0.2dB or less

    Impedance

    50Ω

    75Ω

    Permissible power

    50W

    Voltage protection level

    1.2/50μs、10kV

    1.5kV or less

    DC sparkover voltage

    DC350V±15％

    Impulse discharge current

    8/20μs

    10KA（1 time）


    ●  M-JP-1(50Ω) 仕样书（下载资料）Down
    ●  M-JP-1(75Ω) 仕样书（下载资料）Down
