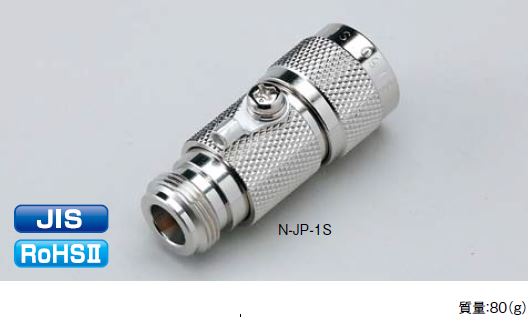

N-JP-1S type

JIS Category C2/D1 compliant

Inquire Now Online Message

Conforming standards:

JIS C5381-21（IEC61643-21） compliant

RoHSⅡ compliant

Applications:

Wireless communication devices

Measuring instruments

QQ图片20250509181037

Item		Performance
Connector type		N type（P-J）
Frequency bandwidth		DC～3GHz
V.S.W.R		1.2 or less
Insertion loss		0.2dB or less
Impedance		50Ω
Permissible power		10W
Voltage protection level		700V or less（at 1kV/μs 900V or less（at 1.2/50μs 10kV）
DC sparkover voltage		DC120V or more
Impulse durability	cagegoryC2 (8/20μs)	5KA（10times）
	cagegoryD1 (10/350μs)	2.5KA（2times）
