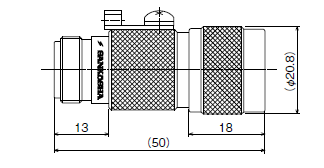

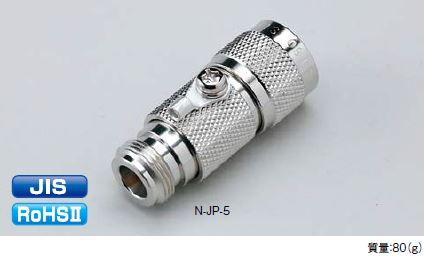

    N-JP-5 type

    JIS Category C2/D1 compliant
    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

    Conforming standards:

    JIS C5381-21（IEC61643-21） compliant

    RoHSⅡ compliant


    Applications:

    Wireless communication devices

    Measuring instruments


    ))W2OB@5U11APQ_4MXK7_HU


    Item

    Performance

    Connector type

    N Type（P-J）

    Frequency bandwidth

    DC～3GHz

    V.S.W.R

    1.2or less

    Insertion loss

    0.3dBor less

    Impedance

    50Ω

    Permissible power

    60W

    Voltage protection level

    700Vor less（1kV/μs）
          900Vor less（1.2/50μs 10kV）

    DC sparkover voltage

    DC200Vor more

    Impulse durability

    cagegoryC2（8/20μs）

    2KA（10times）

    cagegoryD1（10/350μs）

    1KA（2times）


    ●  N-JP-5 仕样书（下载资料）Down
